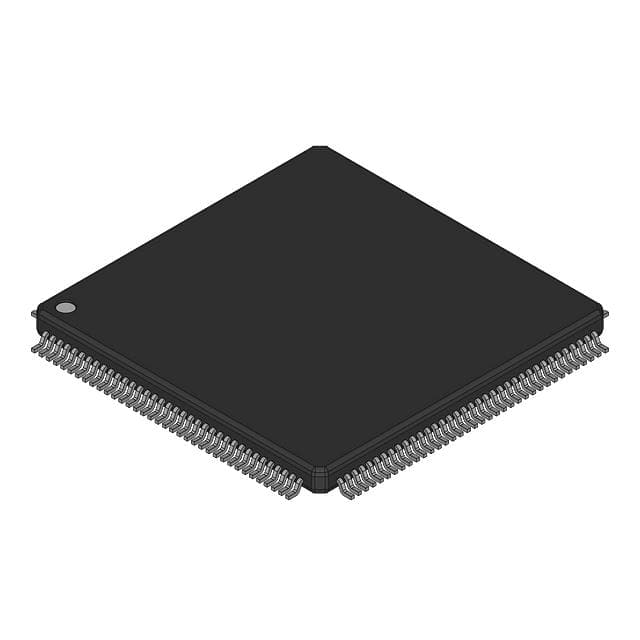

R5F61664RD50FPV
IC MCU 32BIT 512KB FLSH 144LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's H8® H8SX/1600 series microcontroller, part number R5F61664RD50FPV, is a 32-bit single-core device operating at 50MHz. This component features 512KB of FLASH program memory with 40KB of RAM, utilizing a 512K x 8 organization. Connectivity options include EBI/EMI, I2C, IrDA, SCI, SmartCard, and USB interfaces. Embedded peripherals consist of DMA, LVD, POR, PWM, and WDT. It includes an 8x10-bit A/D converter and 2x8-bit D/A converters. The R5F61664RD50FPV is housed in a 144-LFQFP (20x20) surface mount package and operates within an ambient temperature range of -40°C to 85°C. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: H8® H8SX/1600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 40K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8SX |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, IrDA, SCI, SmartCard, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LFQFP (20x20) |
| Number of I/O | 92 |
| Programmable | Not Verified |
