R5F56218BDLD#U0
IC MCU 32BIT 512KB FLASH 85TFLGAManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R5F56218BDLD-U0 is a 32-bit single-core microcontroller from the RX600 series, operating at 100MHz. This component features 512KB of FLASH program memory and 96KB of RAM, with a 512K x 8 configuration for program storage. It is housed in an 85-TFLGA (7x7) package and supports surface mount installation. Connectivity options include CANbus, EBI/EMI, I2C, SCI, SPI, and USB. The device incorporates an 8x10/12-bit Analog-to-Digital converter and a 1x10-bit Digital-to-Analog converter. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. Operating within a temperature range of -40°C to 85°C (TA), this microcontroller is suitable for applications in industrial automation, automotive systems, and consumer electronics. The supply voltage range is 2.7V to 3.6V.
Additional Information
Series: RX600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

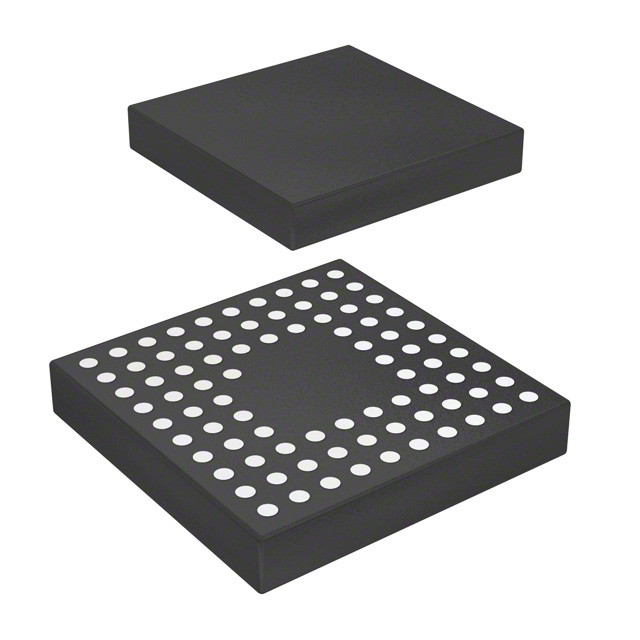

| Package / Case | 85-TFLGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RX |
| Data Converters | A/D 8x10/12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 85-TFLGA (7x7) |
| Number of I/O | 58 |
| Programmable | Not Verified |
