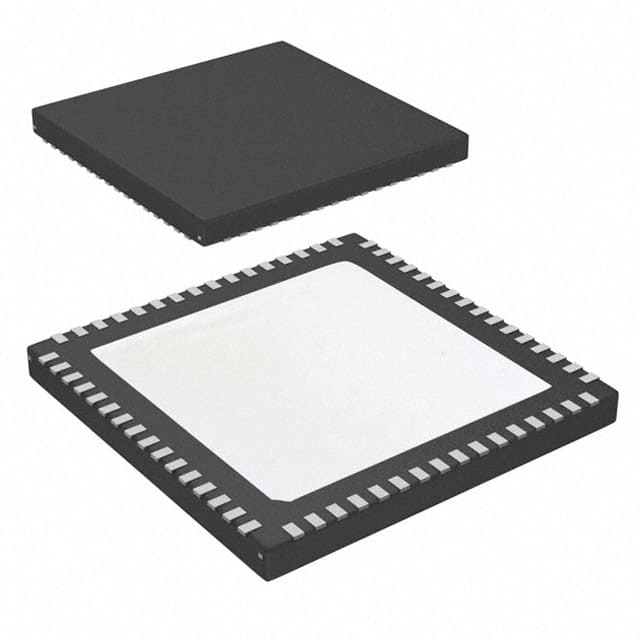

R5F52317BDND#U0
IC MCU 32BIT 384KB FLASH 64HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R5F52317BDND-U0 is a 32-bit microcontroller from the RX200 series. This single-core RXv2 processor operates at 54MHz and features 384KB of FLASH program memory, along with 64KB of RAM and 8KB of EEPROM. Connectivity options include CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, and USB OTG. The device integrates 12-bit A/D converters and 12-bit D/A converters. Peripherals such as DMA, LVD, POR, PWM, and WDT are also included. This surface mount component is housed in a 64-HWQFN (9x9) package. It is suitable for applications requiring robust processing and a comprehensive set of peripherals in the industrial, automotive, and consumer electronics sectors. The operating voltage range is 1.8V to 5.5V with an operating temperature of -40°C to 85°C.
Additional Information
Series: RX200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 54MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RXv2 |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-HWQFN (9x9) |
| Number of I/O | 43 |
| Programmable | Not Verified |
