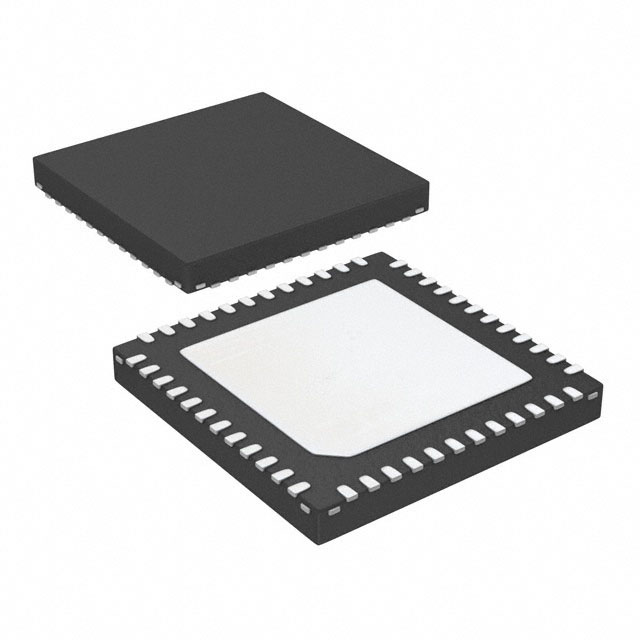

R5F52316ADNE#U0
IC MCU 32BIT 256KB FLASH 48HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's R5F52316ADNE-U0 is a 32-bit RXv2 core microcontroller from the RX200 series. This single-core device operates at 54MHz and features 256KB of FLASH program memory and 32KB of RAM. Connectivity options include CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, and USB OTG. The component includes an 8x12-bit A/D converter and 8KB of EEPROM. Peripherals such as DMA, LVD, POR, PWM, and WDT are integrated. The R5F52316ADNE-U0 is supplied in a 48-HWQFN (7x7) package suitable for surface mounting. It operates within a voltage range of 1.8V to 5.5V and across an industrial temperature range of -40°C to 85°C. This microcontroller is commonly utilized in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: RX200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 54MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RXv2 |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 48-HWQFN (7x7) |
| Number of I/O | 30 |
| Programmable | Not Verified |
