R5F52315CDND#U0

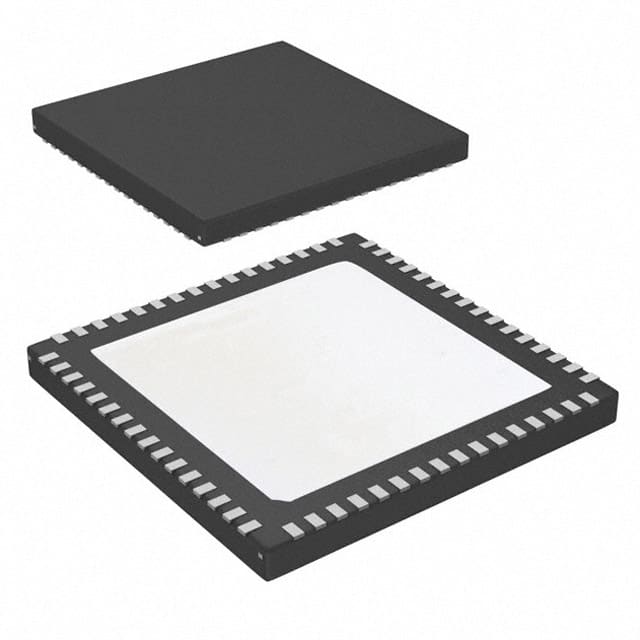

IC MCU 32BIT 128KB FLASH 64HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation RX200 Series microcontroller, part number R5F52315CDND-U0, features a 32-bit RXv2 core operating at 54MHz. This component offers 128KB of FLASH program memory and 32KB of RAM, with an additional 8KB of EEPROM. Connectivity options include I2C, IrDA, SCI, SD/SDIO, SPI, SSI, and USB OTG. The device includes a 12-bit Analog-to-Digital converter with 12 channels and a 12-bit Digital-to-Analog converter with 2 channels. Integrated peripherals consist of DMA, LVD, POR, PWM, and WDT. Designed for surface mounting, it is supplied in a 64-HWQFN (9x9) package. The operating voltage range is 1.8V to 5.5V, with an operating temperature of -40°C to 85°C. This microcontroller is suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: RX200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 54MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RXv2 |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-HWQFN (9x9) |
| Number of I/O | 43 |
| Programmable | Not Verified |
