R5F52315CDLF#20

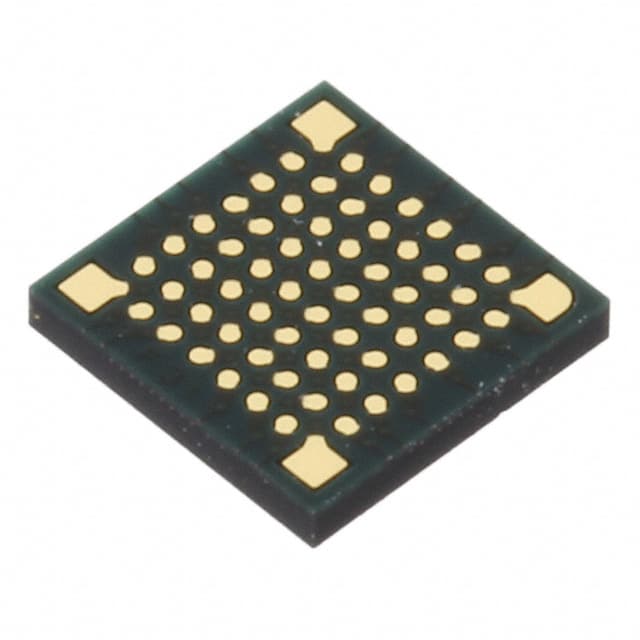

IC MCU 32BIT 128KB FLASH 64FLGAManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R5F51315CDLF-20 is a 32-bit single-core microcontroller based on the RXv2 core, operating at 54MHz. This component features 128KB of FLASH program memory and 32KB of RAM, along with 8KB of EEPROM. It offers a comprehensive suite of peripherals including DMA, LVD, POR, PWM, and WDT. Connectivity options include I2C, IrDA, SCI, SD/SDIO, SPI, SSI, and USB OTG. The device supports 12-bit Analog-to-Digital conversion with 12 channels and 2 channels of 12-bit Digital-to-Analog conversion. Supplied in a 64-FLGA (5x5) surface mount package, it operates within a voltage range of 1.8V to 5.5V and is rated for an ambient temperature range of -40°C to 85°C. This microcontroller is utilized in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: RX200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-WFLGA |
| Mounting Type | Surface Mount |
| Speed | 54MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RXv2 |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-FLGA (5x5) |
| Number of I/O | 43 |
| Programmable | Not Verified |
