R5F52305ADNE#U0

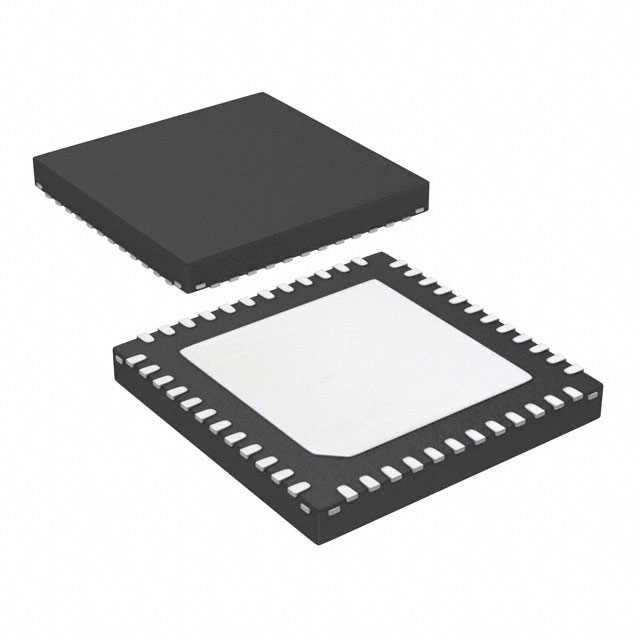

IC MCU 32BIT 128KB FLASH 48HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R5F52305ADNE-U0 is a 32-bit RXv2 core microcontroller from the RX200 series. This single-core device operates at 54MHz and features 128KB of FLASH program memory and 32KB of RAM. Connectivity options include I2C, IrDA, SCI, SPI, and SSI. It is equipped with an 8x12-bit Analog-to-Digital converter and 8KB of EEPROM. Peripherals include DMA, LVD, POR, PWM, and WDT. The R5F52305ADNE-U0 has 34 I/O pins and is supplied in a 48-HWQFN (7x7) package suitable for surface mounting. Operating voltage ranges from 1.8V to 5.5V with an operating temperature of -40°C to 85°C. This component is utilized in industrial, consumer electronics, and automotive applications.
Additional Information
Series: RX200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 54MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RXv2 |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, IrDA, SCI, SPI, SSI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 48-HWQFN (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
