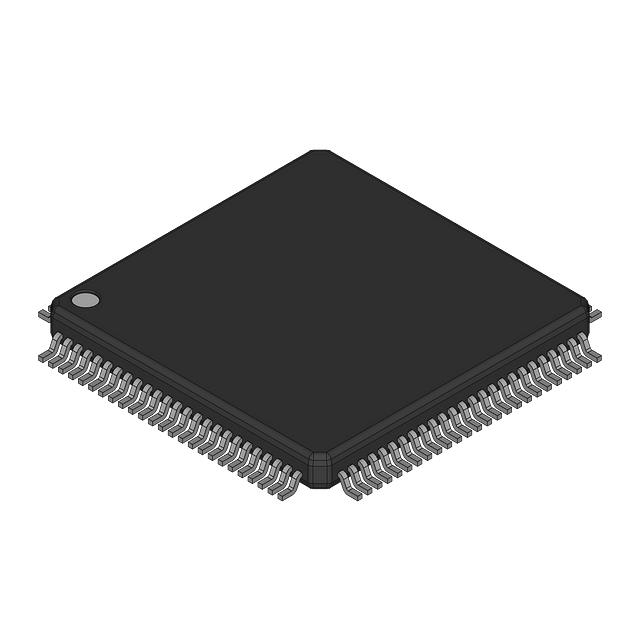

R5F3650KCNFB#V2
IC MCU 16BIT 384KB FLSH 100LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/60/65C microcontroller. This 16-bit M16C/60 core device operates at 32MHz, featuring 384KB of FLASH program memory and 31KB of RAM. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. Connectivity options encompass EBI/EMI, I2C, SIO, and UART/USART. It provides 26x10-bit Analog-to-Digital converters and 2x8-bit Digital-to-Analog converters, along with 8K x 8 EEPROM. The R5F3650KCNFB-V2 is housed in a 100-LFQFP (14x14) package for surface mounting and operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of -20°C to 85°C. This component is suitable for automotive, industrial, and consumer electronics applications.
Additional Information
Series: M16C™ M16C/60/65CRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 384KB (384K x 8) |
| RAM Size | 31K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | M16C/60 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, SIO, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-LFQFP (14x14) |
| Number of I/O | 85 |
| Programmable | Not Verified |
