R5F3650KCDFB#V0

IC MCU QFP

Manufacturer: Renesas Electronics Corporation

Categories: Microcontrollers

Quality Control: Learn More

Renesas Electronics Corporation M16C™ M16C/60/65C Series microcontroller, part number R5F3650KCDFB-V0. This 16-bit M16C/60 core microcontroller operates at 32MHz and features 384KB of FLASH program memory and 31KB of RAM. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. Connectivity options encompass EBI/EMI, I2C, SIO, and UART/USART. The device includes 26x10-bit Analog-to-Digital converters and 2x8-bit Digital-to-Analog converters, along with 8K x 8 EEPROM. Supplied in a 100-LFQFP (14x14) surface mount package, it supports an operating voltage range of 2.7V to 5.5V and operates within an ambient temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation, automotive systems, and consumer electronics.

Additional Information

Series: M16C™ M16C/60/65CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tray
Technical Details:
PackagingTray
Package / Case100-LQFP
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size384KB (384K x 8)
RAM Size31K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size8K x 8
Core ProcessorM16C/60
Data ConvertersA/D 26x10b; D/A 2x8b
Core Size16-Bit
Voltage - Supply (Vcc/Vdd)2.7V ~ 5.5V
ConnectivityEBI/EMI, I2C, SIO, UART/USART
PeripheralsDMA, LVD, POR, PWM, WDT
Supplier Device Package100-LFQFP (14x14)
Number of I/O85
ProgrammableNot Verified

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image
R5F3650ECDFB#V2

IC MCU 16BIT 272KB FLSH 100LFQFP

product image

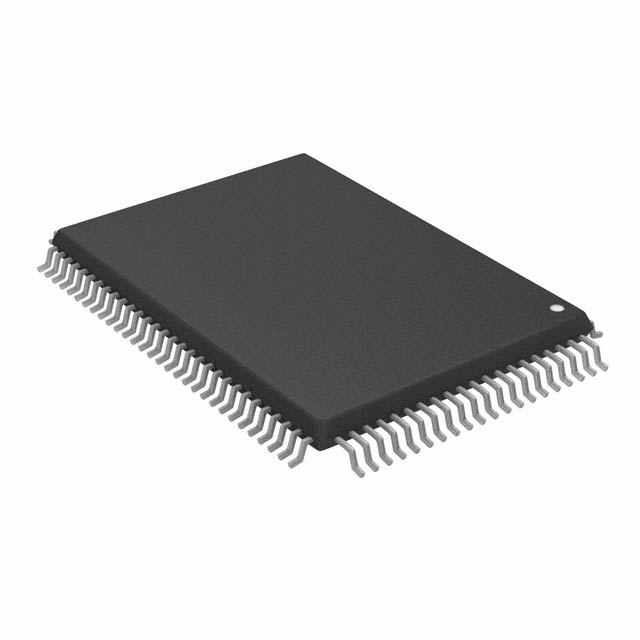

R5F3650MCDFA#V0
