R5F2LA64ANFP#V0
IC MCU 16BIT 16KB FLASH 64LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/Lx/A6A microcontroller, part number R5F2LA64ANFP-V0. This 16-bit MCU features an R8C core operating at 20MHz, with 16KB of FLASH program memory and 2KB of RAM. On-chip peripherals include an 8-channel, 10-bit A/D converter, I2C, LINbus, SIO, SSU, and UART/USART connectivity. The microcontroller also offers an LCD controller, Power-On Reset (POR), PWM generation, voltage detection, and a Watchdog Timer (WDT). It is housed in a 64-LFQFP package with a surface mount type and supports a voltage range of 1.8V to 5.5V. Operating temperature is specified from -20°C to 85°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: R8C/Lx/A6ARoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

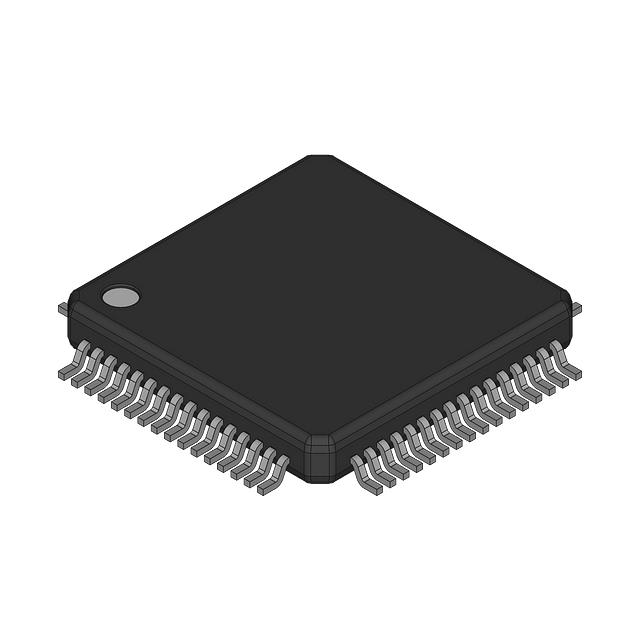

| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LCD, POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 56 |
| Programmable | Not Verified |
