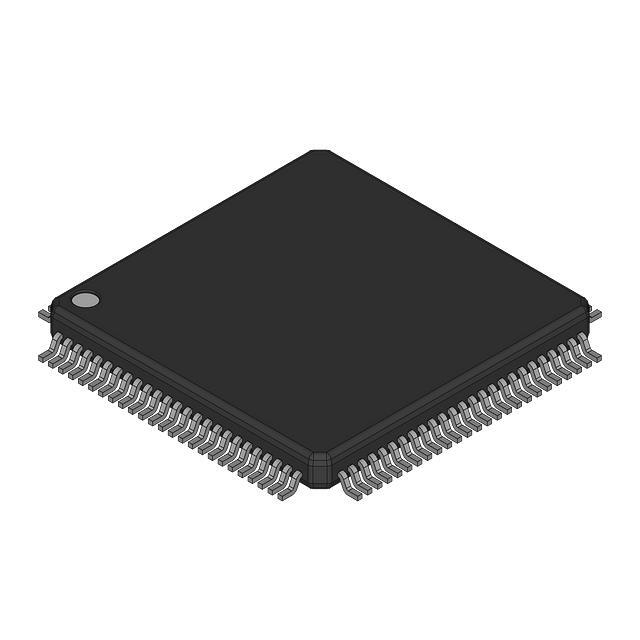

R5F2L3A8ANFP#U1
IC MCU 16BIT 64KB FLASH 100LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/Lx/3AA series microcontroller, part number R5F2L3A8ANFP-U1. This 16-bit R8C core microcontroller operates at 20MHz, featuring 64KB of FLASH program memory and 8KB of RAM. It includes 4KB of EEPROM. The device offers 88 I/O pins and supports various communication interfaces including I2C, LINbus, SIO, SSU, and UART/USART. On-chip peripherals include an LCD controller, POR, PWM, Voltage Detect, and WDT. Data conversion capabilities are provided by a 20x10-bit A/D converter and 2x8-bit D/A converters. Supplied in a 100-LFQFP (14x14) package for surface mounting, this component operates within a temperature range of -20°C to 85°C and requires a supply voltage of 1.8V to 5.5V. This microcontroller is utilized in industrial automation, automotive systems, and consumer electronics applications.
Additional Information
Series: R8C/Lx/3AARoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 20x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LCD, POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 100-LFQFP (14x14) |
| Number of I/O | 88 |
| Programmable | Not Verified |
