R5F213J6TNNP#YC
IC MCU 16BIT 32KB FLASH 40HXQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/3x/3JT Series microcontroller, part number R5F213J6TNNP-YC, is a 16-bit device featuring a 20MHz R8C core. This component offers 32KB of FLASH program memory and 2.5KB of RAM. Integrated data conversion capabilities include 12x10-bit Analog-to-Digital converters. Connectivity options include I2C and UART/USART interfaces. The microcontroller operates within a voltage range of 1.8V to 5.5V and has an operating temperature range of -20°C to 85°C. Peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT). The 40-HXQFN (5x5) package with an exposed pad is suitable for surface mounting. This component is utilized in applications such as industrial automation and consumer electronics.
Additional Information
Series: R8C/3x/3JTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

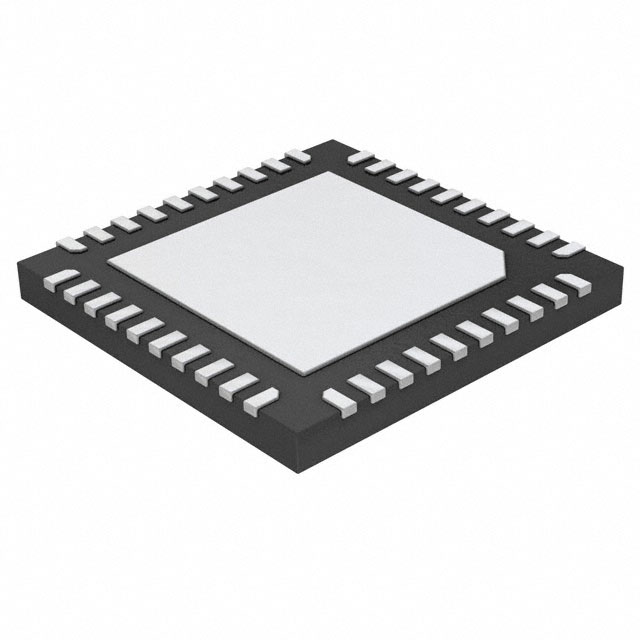

| Package / Case | 40-XFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2.5K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 12x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 40-HXQFN (5x5) |
| Number of I/O | 31 |
| Programmable | Not Verified |
