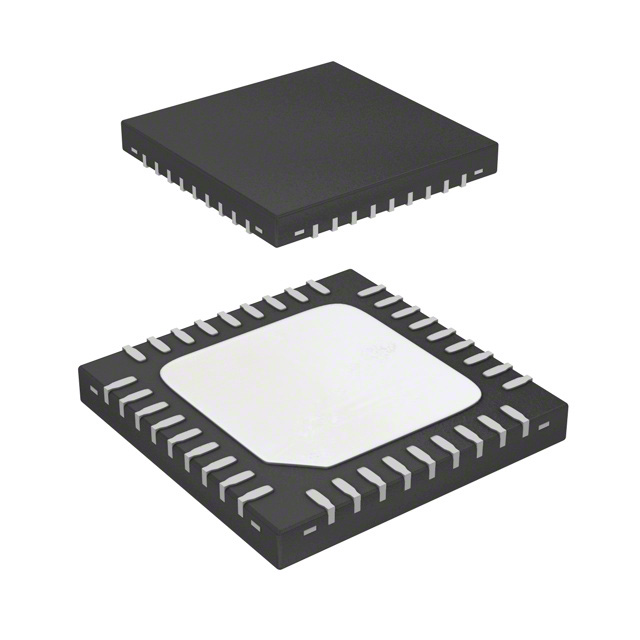

R5F213J6CNNP#W4
IC MCU 16BIT 32KB FLASH 36HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R8C/3x/3JC series R5F213J6CNNP-W4 is a 16-bit microcontroller featuring a 20MHz R8C core. This device offers 32KB of FLASH program memory and 2.5KB of RAM. On-chip peripherals include a 10-channel 10-bit Analog-to-Digital (A/D) converter and a 2-channel 8-bit Digital-to-Analog (D/A) converter. Connectivity options comprise I2C, LINbus, SIO, SSU, and UART/USART. The microcontroller is housed in a 36-HWQFN (6x6) package with a surface mount orientation and operates within a voltage range of 1.8V to 5.5V. Peripherals also include Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT). This component is widely utilized in automotive and industrial applications.
Additional Information
Series: R8C/3x/3JCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2.5K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 10x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 36-HWQFN (6x6) |
| Number of I/O | 31 |
| Programmable | Not Verified |
