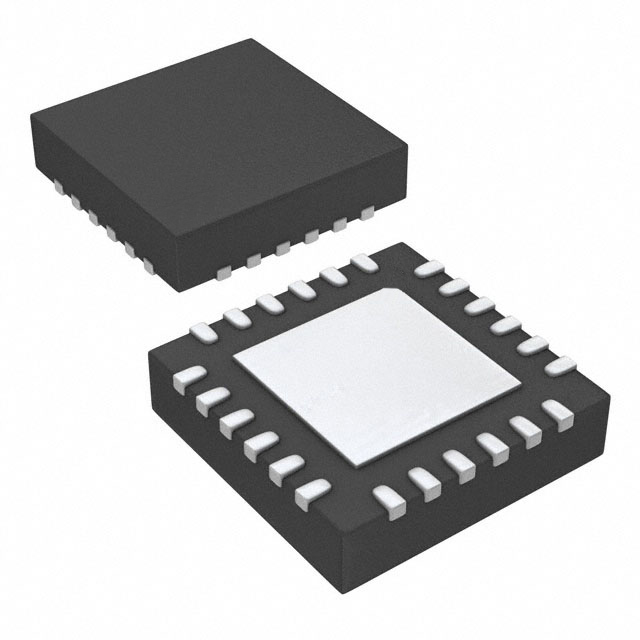

R5F213G2CNNP#U0
IC MCU 16BIT 8KB FLASH 24HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/3x/3GC Series microcontroller, part number R5F213G2CNNP-U0. This 16-bit R8C core microcontroller operates at 20MHz and features 8KB of FLASH program memory, with 1K x 8 of RAM and 4K x 8 of EEPROM. It includes an 8-channel, 10-bit Analog-to-Digital converter and a 2-channel, 8-bit Digital-to-Analog converter. Connectivity options include I2C, LINbus, SIO, SSU, and UART/USART. Peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT) are integrated. The device is packaged in a 24-HWQFN (4x4) with surface mount capability and operates within a temperature range of -20°C to 85°C. This component is suitable for applications in automotive and industrial sectors.
Additional Information
Series: R8C/3x/3GCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 24-HWQFN (4x4) |
| Number of I/O | 19 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
R5F213G6CNNP#U0
IC MCU 16BIT 32KB FLASH 24HWQFN
R5F213G6CNNP#W4
IC MCU 16BIT 32KB FLASH 24HWQFN

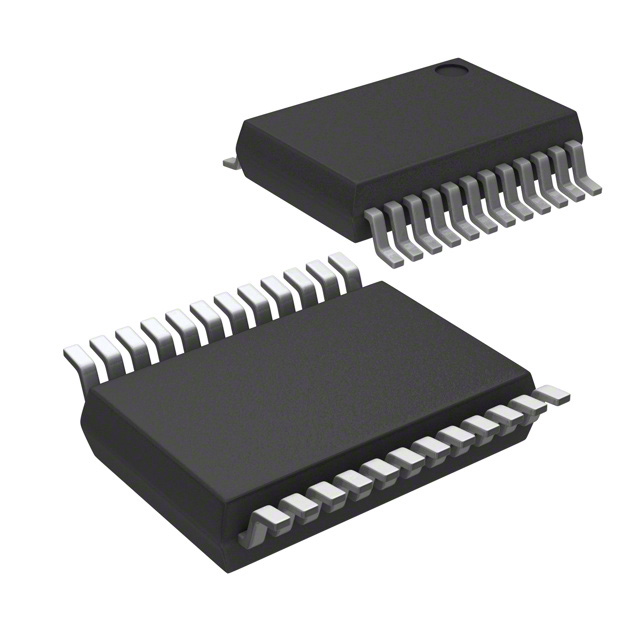

R5F213G6CNSP#W4
