R5F2136CWKFP#U0

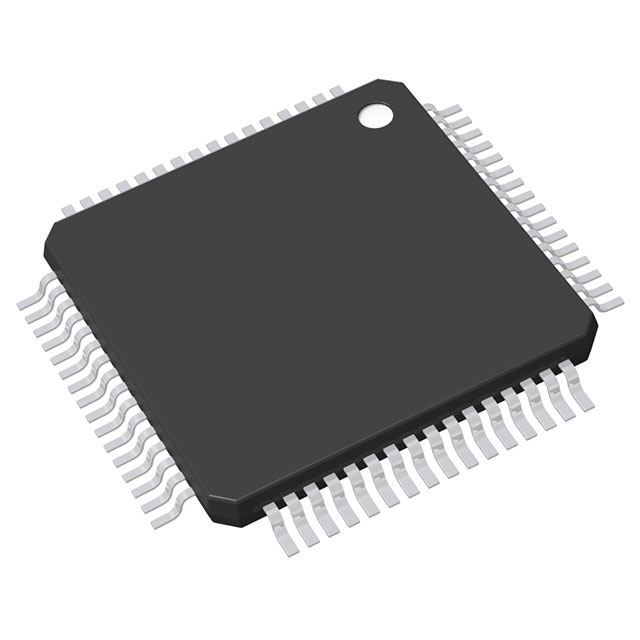

IC MCU 16BIT 128KB FLASH 64LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/3x/36W Series microcontroller, part number R5F2136CWKFP-U0, is a 16-bit device featuring a 20MHz R8C core. It offers 128KB of FLASH program memory and 10KB of RAM, complemented by 4KB of EEPROM. This microcontroller supports multiple communication interfaces including CANbus, I2C, LINbus, SIO, SSU, and UART/USART. On-chip peripherals include POR, PWM, Voltage Detect, and WDT. The device integrates 16-channel, 10-bit analog-to-digital converters and provides 59 programmable I/O lines. Housed in a 64-LFQFP (10x10) surface mount package, it operates across a temperature range of -40°C to 125°C (TA) with a supply voltage of 2.7V to 5.5V. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: R8C/3x/36WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 10K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | R8C |
| Data Converters | A/D 16x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 59 |
| Programmable | Not Verified |
