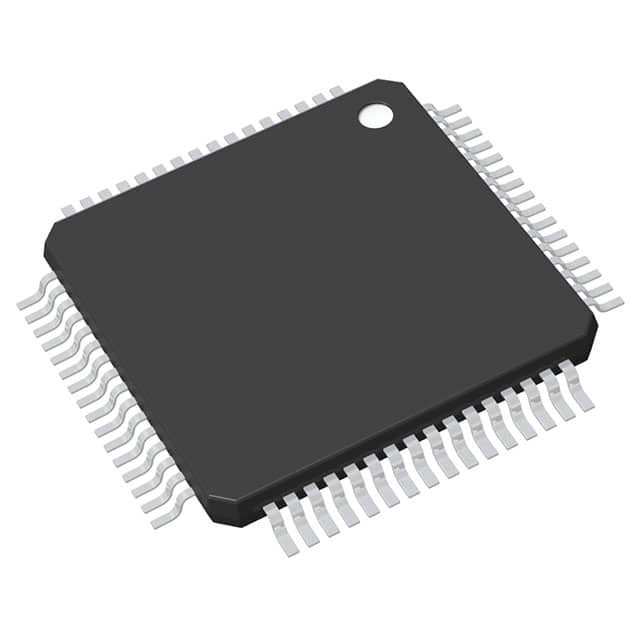

R5F21364CNFP#V0
IC MCU 16BIT 16KB FLASH 64LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R8C/3x/36C series microcontroller, part number R5F21364CNFP-V0, is a 16-bit device featuring a 20MHz R8C core. This unit offers 16KB of FLASH program memory and 1.5KB of RAM. Connectivity options include I2C, LINbus, SIO, SSU, and UART/USART. On-chip peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT). The device integrates 12 channels of 10-bit Analog-to-Digital converters and 2 channels of 8-bit Digital-to-Analog converters. Supplied in a 64-LFQFP (10x10) surface mount package, it operates within a voltage range of 1.8V to 5.5V and an ambient temperature range of -20°C to 85°C. This component finds application in automotive and industrial control systems.
Additional Information
Series: R8C/3x/36CRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1.5K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 12x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 59 |
| Programmable | Not Verified |
