R5F212J1SNSP#U0
IC MCU 16BIT 4KB FLASH 20LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

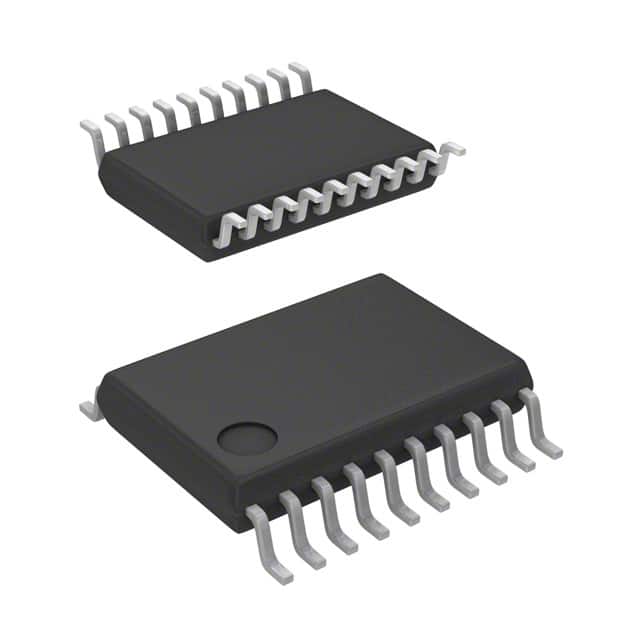

The Renesas Electronics Corporation R8C/2x/2J series microcontroller, part number R5F212J1SNSP-U0, is a 16-bit device operating at 8MHz. This FLASH-based MCU features 4KB (4K x 8) of program memory and 384 x 8 bytes of RAM. Connectivity options include LINbus, SIO, and UART/USART interfaces. The device integrates peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT). It is housed in a 20-LSSOP package suitable for surface mounting. The operating temperature range is -20°C to 85°C, with a supply voltage of 2.2V to 5.5V. This component finds application in automotive control and industrial automation systems.
Additional Information
Series: R8C/2x/2JRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 384 x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | - |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Connectivity | LINbus, SIO, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 20-LSSOP |
| Number of I/O | 12 |
| Programmable | Not Verified |
