R5F212ACSDFA#X6

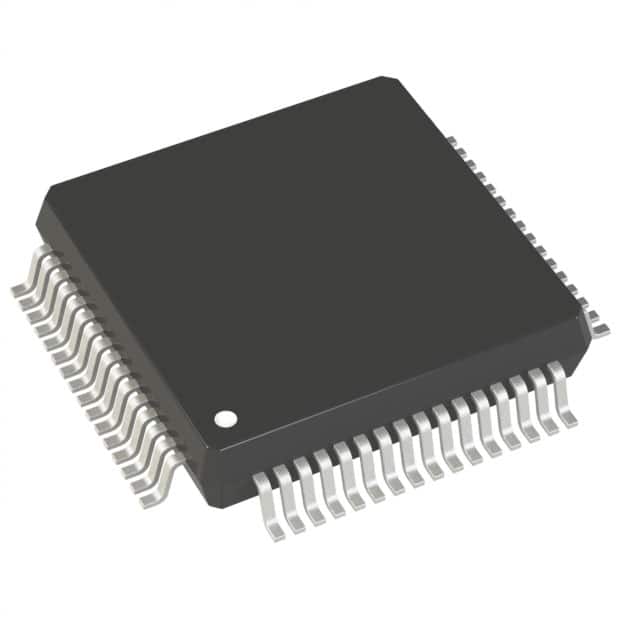

IC MCU 16BIT 128KB FLASH 64LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation R8C/2x/2A microcontroller, part number R5F212ACSDFA-X6, features a 16-bit R8C core operating at 20MHz. This device offers 128KB of FLASH program memory and 7.5KB of RAM. Integrated peripherals include a 12-bit Analog-to-Digital converter with 12 channels and an 8-bit Digital-to-Analog converter with 2 channels. Connectivity options comprise I2C, LINbus, SIO, SSU, and UART/USART. The microcontroller supports various system functions such as Power-On Reset (POR), Pulse Width Modulation (PWM), Voltage Detect, and Watchdog Timer (WDT). It is housed in a 64-LQFP (14x14) package and operates within a voltage range of 2.2V to 5.5V. Operating temperature is specified from -40°C to 85°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: R8C/2x/2ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 7.5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 12x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 64-LQFP (14x14) |
| Number of I/O | 55 |
| Programmable | Not Verified |
