R5F212AASNFP#V2
IC MCU 16BIT 96KB FLASH 64LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/2x/2A Series microcontroller, part number R5F212AASNFP-V2. This 16-bit R8C core microcontroller operates at 20MHz and features 96KB of FLASH program memory and 7KB of RAM. It includes integrated peripherals such as POR, PWM, Voltage Detect, and WDT. Connectivity options include I2C, LINbus, SIO, SSU, and UART/USART. The device incorporates a 12-channel 10-bit A/D converter and 2-channel 8-bit D/A converters. Supplied in a 64-LFQFP (10x10) package for surface mounting, this component is suitable for applications in automotive, industrial automation, and consumer electronics. The operating temperature range is -20°C to 85°C.
Additional Information
Series: R8C/2x/2ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 96KB (96K x 8) |
| RAM Size | 7K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 12x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 55 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
R5F212A7SNFA#V2
IC MCU 16BIT 48KB FLASH 64LQFP
R5F212AASDFP#V2
IC MCU 16BIT 96KB FLASH 64LFQFP

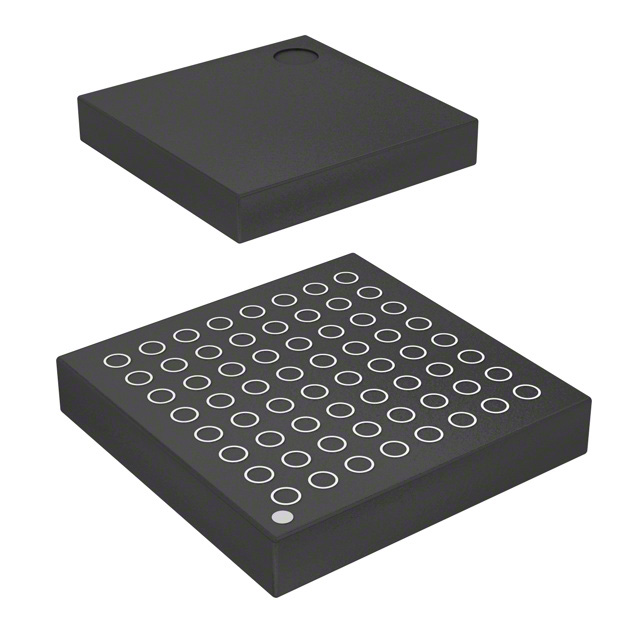

R5F212A7SNLG#W4
