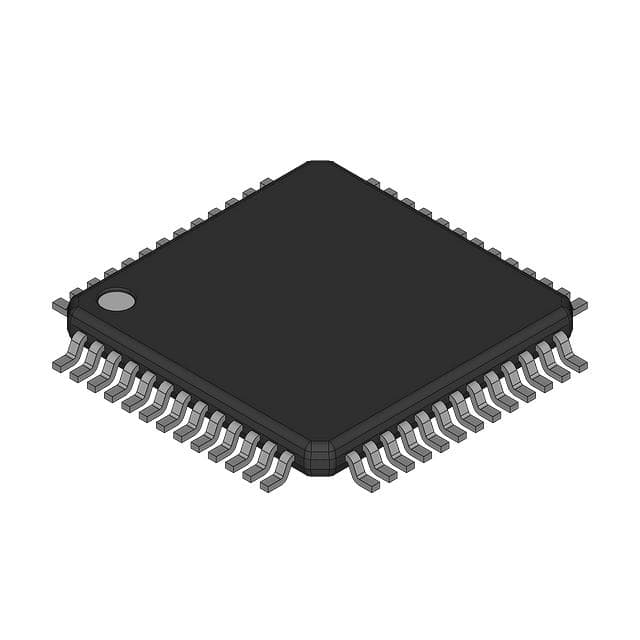

R5F21256SYFP#U0
IC MCU 16BIT 32KB FLASH 52LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/2x/25 Series R5F21256SYFP-U0 microcontroller. This 16-bit device features a 20MHz R8C core with 32KB of FLASH program memory and 2KB of RAM. Connectivity options include I2C, LINbus, SIO, SSU, and UART/USART. It is equipped with a 12x10-bit A/D converter and peripherals such as POR, Voltage Detect, and WDT. The component is supplied in a 52-LQFP (10x10) surface mount package and operates from a 2.2V to 5.5V supply. This device is suitable for applications in automotive and industrial markets.
Additional Information
Series: R8C/2x/25RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -20°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 12x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, Voltage Detect, WDT |
| Supplier Device Package | 52-LQFP (10x10) |
| Number of I/O | 41 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

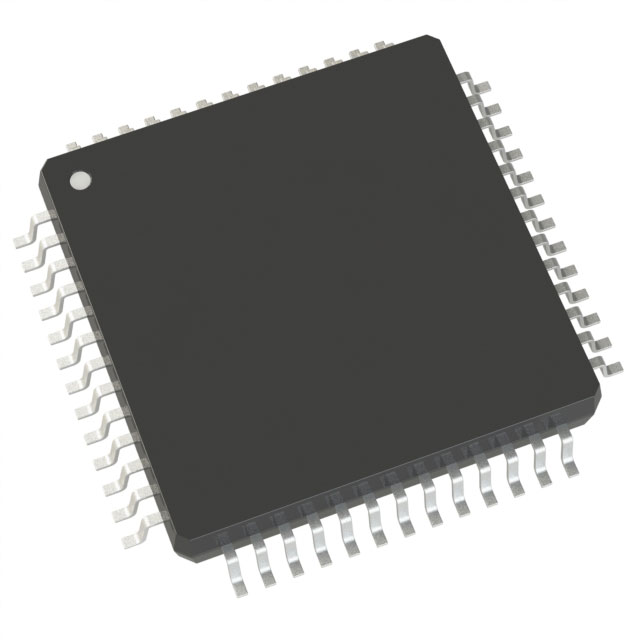

R5F21258SNFP#V2
