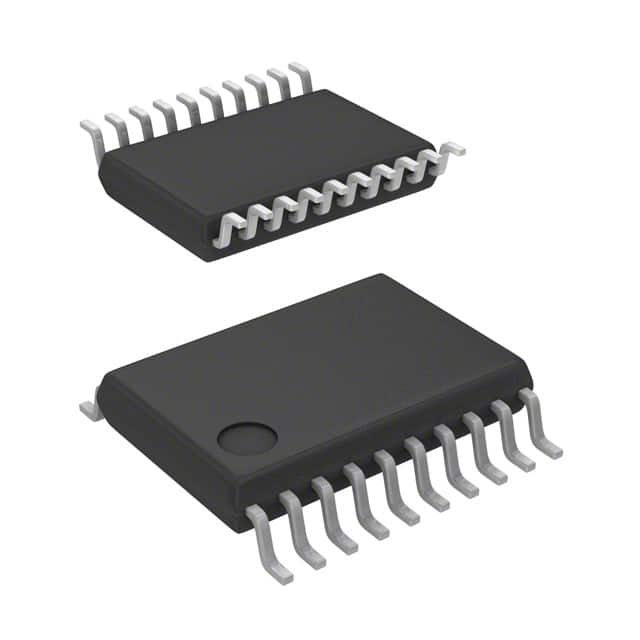

R5F21173DSP#U0
IC MCU 16BIT 12KB FLASH 20LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation's R8C/1x/17 series R5F21173DSP-U0 is a 16-bit microcontroller featuring a 12KB FLASH program memory and 768 bytes of RAM. This device operates at a 20MHz core speed and includes an internal oscillator. Connectivity options comprise I2C, SIO, and UART/USART interfaces. On-chip peripherals include LED drivers, Power-On Reset (POR), Voltage Detect, and a Watchdog Timer (WDT). The R8C/1x/17 microcontroller is equipped with a 4-channel, 10-bit Analog-to-Digital (A/D) converter and offers 13 general-purpose I/O pins. It is housed in a 20-LSSOP package and designed for surface mounting. The operating temperature range is -40°C to 85°C (TA), with a supply voltage range of 2.7V to 5.5V. This component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: R8C/1x/17RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 12KB (12K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 4x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SIO, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Supplier Device Package | 20-LSSOP |
| Number of I/O | 13 |
| Programmable | Not Verified |
