R5F21164DSP#U0

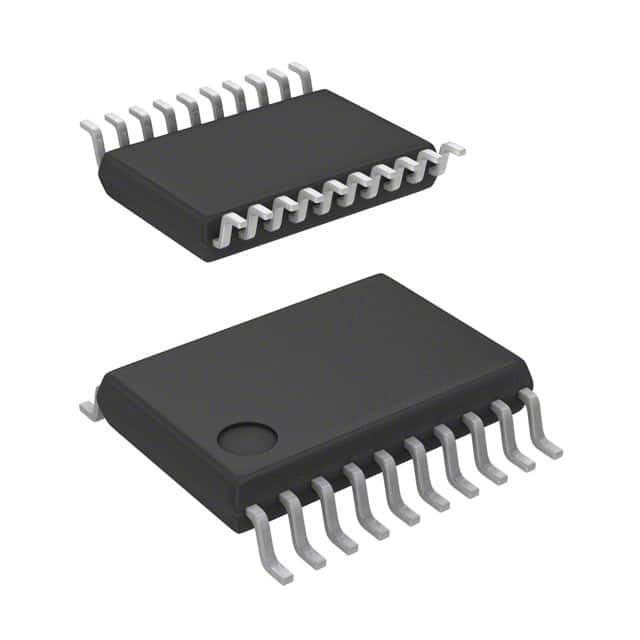

IC MCU 16BIT 16KB FLASH 20LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/1x/16 series microcontroller, part number R5F21164DSP-U0. This 16-bit R8C core microcontroller features 16KB of FLASH program memory and 1KB of RAM. It operates at a maximum speed of 20MHz and supports I2C, SIO, and UART/USART communication interfaces. The device includes a 4-channel, 10-bit Analog-to-Digital converter (A/D). Integrated peripherals include LED drivers, Power-On Reset (POR), Voltage Detect, and a Watchdog Timer (WDT). With 13 general-purpose I/O pins, this surface-mount component is housed in a 20-LSSOP package. The operating temperature range is -40°C to 85°C. Applications include automotive systems, industrial controls, and consumer electronics.
Additional Information
Series: R8C/1x/16RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 4x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SIO, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Supplier Device Package | 20-LSSOP |
| Number of I/O | 13 |
| Programmable | Not Verified |
