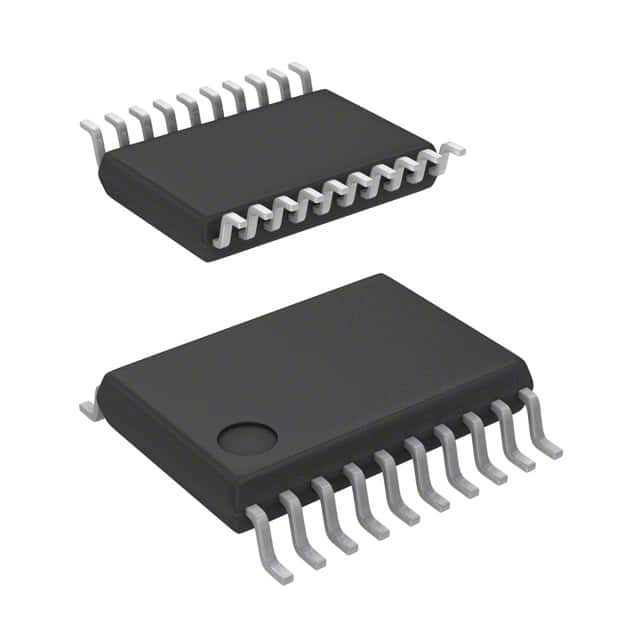

R5F21142SP#W4
IC MCU 16BIT 8KB FLASH 20LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/1x/14 Series R5F21142SP-W4 is a 16-bit microcontroller featuring an R8C core operating at 20MHz. This device offers 8KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SIO, SSU, and UART/USART interfaces. The microcontroller is equipped with a 4-channel, 10-bit Analog-to-Digital converter and integrated peripherals such as LED drivers, Power-On Reset (POR), Voltage Detect, and Watchdog Timer (WDT). It is supplied in a 20-LSSOP package suitable for surface mounting and operates within a temperature range of -20°C to 85°C. This component is commonly utilized in industrial and consumer electronics applications.
Additional Information
Series: R8C/1x/14RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 4x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SIO, SSU, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Supplier Device Package | 20-LSSOP |
| Number of I/O | 13 |
| Programmable | Not Verified |
