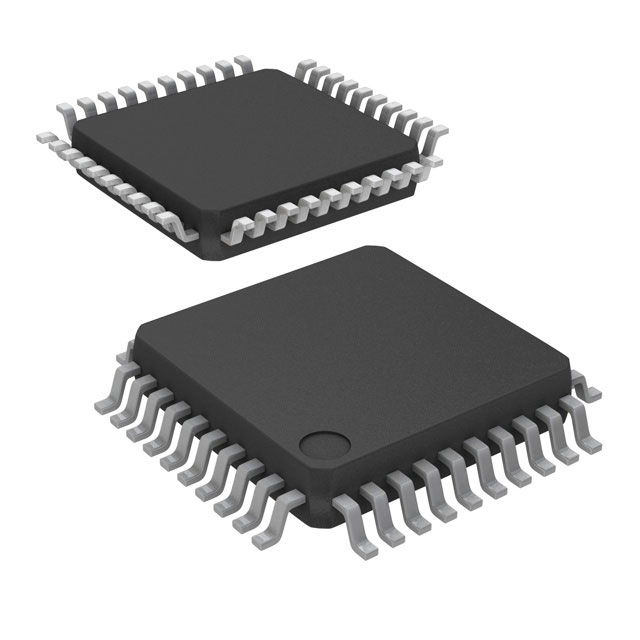

R5F21102FP#U0
IC MCU 16BIT 8KB FLASH 32LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation R8C/1x/10 Series microcontroller, part number R5F21102FP-U0. This 16-bit R8C core device operates at 16MHz and features 8KB of FLASH program memory with 512 bytes of RAM. On-chip peripherals include an 8-channel, 10-bit Analog-to-Digital converter, Watchdog Timer (WDT), and support for SIO and UART/USART communication. It is supplied in a 32-LQFP (7x7) surface mount package and operates within a voltage range of 2.7V to 5.5V. The R5F21102FP-U0 is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: R8C/1x/10RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | R8C |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SIO, UART/USART |
| Peripherals | LED, WDT |
| Supplier Device Package | 32-LQFP (7x7) |
| Number of I/O | 22 |
| Programmable | Verified |
