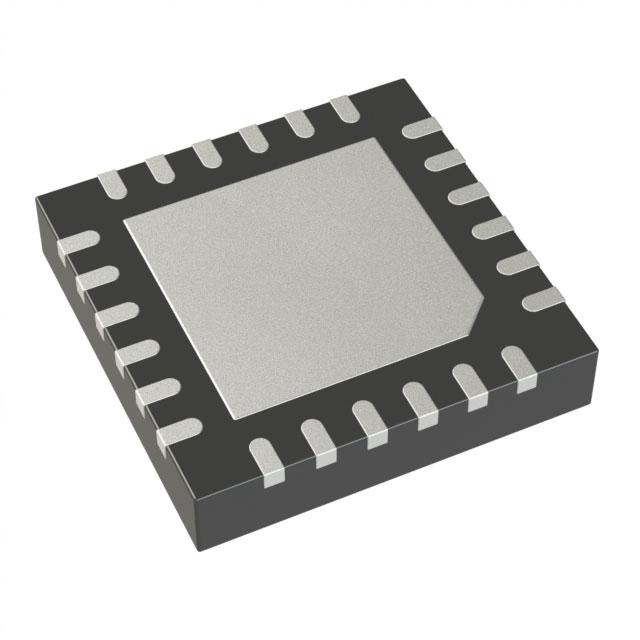

R5F11778GNA#00
IC MCU 16BIT 8KB FLASH 24HWQFNManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
RL78 RL78/I1D Microcontroller IC 16-Bit 24MHz 8KB (8K x 8) FLASH 24-HWQFN (4x4)
Additional Information
Series: RL78/I1DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | RL78 |
| Data Converters | A/D 6x8/12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Connectivity | CSI, I2C, UART/USART |
| Peripherals | LVD, POR, WDT |
| Supplier Device Package | 24-HWQFN (4x4) |
| Number of I/O | 15 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
R5F1177AGNA#20
IC MCU 16BIT 16KB FLASH 24HWQFN

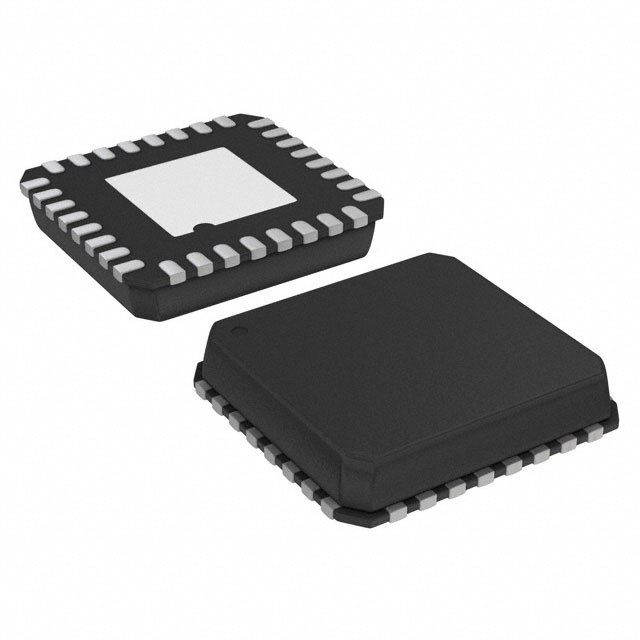

R5F117BCGNA#20
