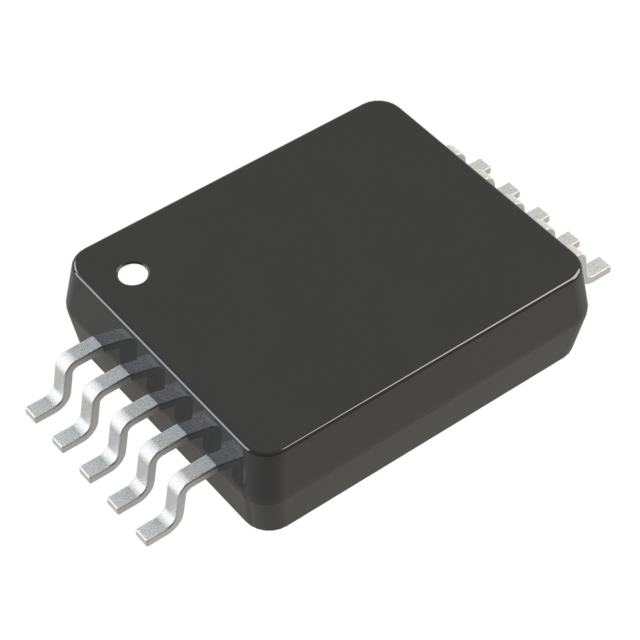

R5F10Y16ASP#V0
IC MCU 16BIT 2KB FLASH 10LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation RL78/G10 series microcontroller, part number R5F10Y16ASP-V0, features a 16-bit RL78 core operating at up to 20MHz. This device offers 2KB of FLASH program memory and 256 Bytes of RAM. Connectivity options include CSI, I2C, LINbus, and UART/USART interfaces. Integrated peripherals comprise DMA, LVD, POR, PWM, and WDT. Data conversion is supported by 4x 8/10-bit A/D converters. The microcontroller is housed in a 10-LSSOP package with a surface mount type and has 6 I/O pins. It operates across a voltage range of 2V to 5.5V and at ambient temperatures from -40°C to 85°C. This component is commonly utilized in automotive and industrial applications.
Additional Information
Series: RL78/G10RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 10-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RL78 |
| Data Converters | A/D 4x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 10-LSSOP |
| Number of I/O | 6 |
| Programmable | Not Verified |
