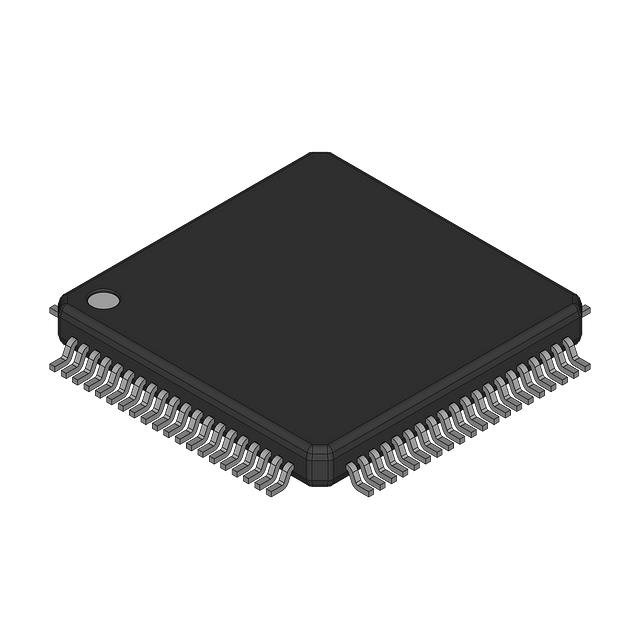

productimage

R5F10FMEDFB#YK1

IC MCU 16BIT 64KB FLASH 80LFQFP

Manufacturer: Renesas Electronics Corporation

Categories: Microcontrollers

Quality Control: Learn More

Renesas Electronics Corporation RL78/G1E series microcontroller, part number R5F10FMEDFB-YK1. This 16-bit microcontroller features a 32MHz RL78 core, 64KB of FLASH program memory, and 4KB of RAM. Connectivity options include CSI, I2C, LINbus, and UART/USART. Data conversion capabilities are provided by 17 analog inputs with 8/12-bit resolution. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. The device operates within a voltage range of 1.6V to 5.5V and has an operating temperature of -40°C to 85°C. The R5F10FMEDFB-YK1 is supplied in an 80-LFQFP package. This component is commonly utilized in automotive and industrial applications.

Additional Information

Series: RL78/G1ERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tray
Technical Details:
PackagingTray
Package / Case80-LQFP
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size64KB (64K x 8)
RAM Size4K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size4K x 8
Core ProcessorRL78
Data ConvertersA/D 17x8/12b
Core Size16-Bit
Voltage - Supply (Vcc/Vdd)1.6V ~ 5.5V
ConnectivityCSI, I2C, LINbus, UART/USART
PeripheralsDMA, LVD, POR, PWM, WDT
Supplier Device Package80-LFQFP (12x12)
Number of I/O26
ProgrammableNot Verified
