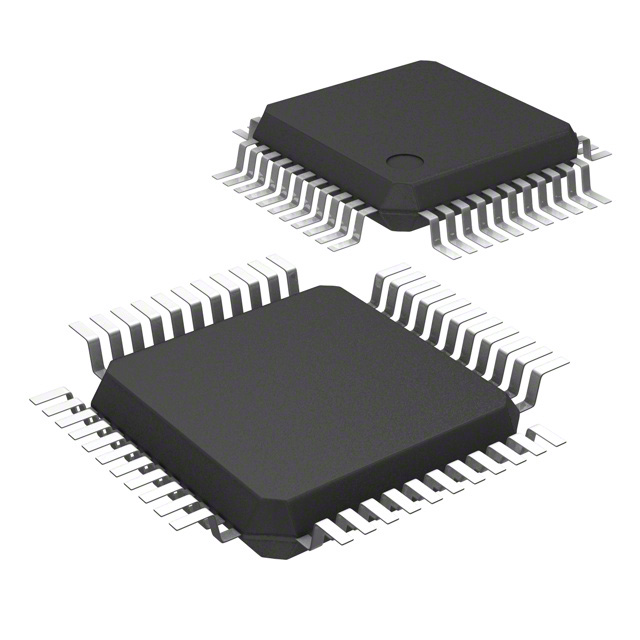

R5F104FJAFP#V0
IC MCU 16BIT 256KB FLASH 44LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation RL78/G14 microcontroller, part number R5F104FJAFP-V0, features a 16-bit RL78 core operating at 32MHz. This device offers 256KB of FLASH program memory and 24KB of RAM, complemented by 8KB of EEPROM. Connectivity options include CSI, I2C, LINbus, and UART/USART. The R5F104FJAFP-V0 includes analog capabilities with 10x8/10-bit A/D converters and 2x8-bit D/A converters. Peripherals such as DMA, LVD, POR, PWM, and WDT are integrated for enhanced functionality. With 31 I/O pins and an internal oscillator, it supports surface mount installation in a 44-LQFP (10x10) package. Operating voltage ranges from 1.6V to 5.5V with an operating temperature of -40°C to 85°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: RL78/G14RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 24K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| Core Processor | RL78 |
| Data Converters | A/D 10x8/10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 31 |
| Programmable | Not Verified |
