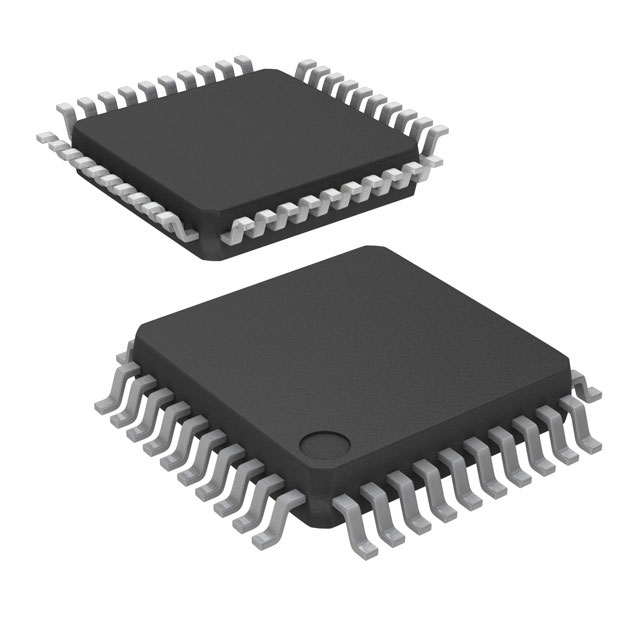

R5F104BGAFP#V0

IC MCU 16BIT 128KB FLASH 32LQFP

Manufacturer: Renesas Electronics Corporation

Categories: Microcontrollers

Quality Control: Learn More

The Renesas Electronics Corporation R5F104BGAFP-V0 is a 16-bit microcontroller from the RL78/G14 series. This device features a 128KB FLASH program memory and 16KB RAM, operating at a maximum speed of 32MHz. It includes an 8K x 8 EEPROM for non-volatile data storage. Connectivity options are extensive, with support for CSI, I2C, LINbus, and UART/USART protocols. On-chip data conversion capabilities include 8x8/10-bit Analog-to-Digital converters and 2x8-bit Digital-to-Analog converters. The microcontroller integrates peripherals such as DMA, LVD, POR, PWM, and WDT, enhancing control and management functions. The R5F104BGAFP-V0 is housed in a 32-LQFP (7x7) surface mount package and operates within a voltage range of 1.6V to 5.5V, with an ambient temperature range of -40°C to 85°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.

Additional Information

Series: RL78/G14RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tray
Technical Details:
PackagingTray
Package / Case32-LQFP
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size128KB (128K x 8)
RAM Size16K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size8K x 8
Core ProcessorRL78
Data ConvertersA/D 8x8/10b; D/A 2x8b
Core Size16-Bit
Voltage - Supply (Vcc/Vdd)1.6V ~ 5.5V
ConnectivityCSI, I2C, LINbus, UART/USART
PeripheralsDMA, LVD, POR, PWM, WDT
Supplier Device Package32-LQFP (7x7)
Number of I/O22
ProgrammableNot Verified
