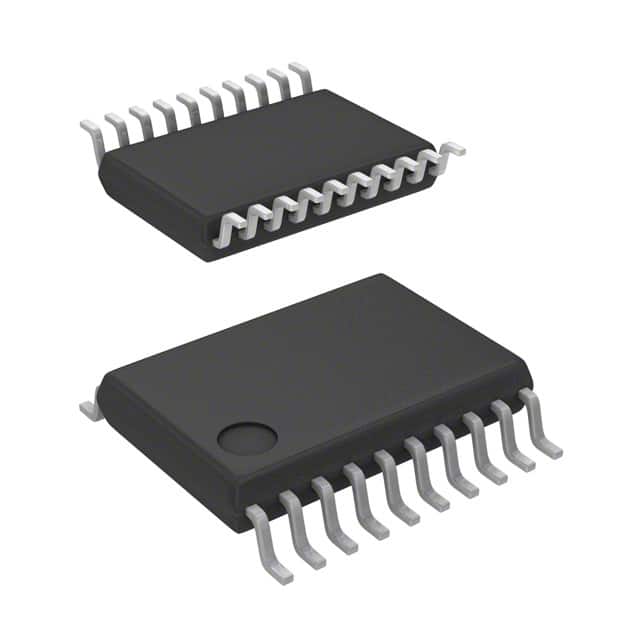

R5F1036AASP#V0
IC MCU 16BIT 16KB FLASH 20LSSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation RL78/G12 microcontroller, part number R5F1036AASP-V0, features a 16-bit RL78 core operating at up to 24MHz. This device offers 16KB of FLASH program memory and 1.5KB of RAM. Connectivity options include CSI, I2C, and UART/USART interfaces. Integrated peripherals include LVD, POR, PWM, and WDT. The R5F1036AASP-V0 includes an 11-channel 8/10-bit A/D converter and supports 14 I/O lines. Housed in a 20-LSSOP package, it operates from 1.8V to 5.5V over an industrial temperature range of -40°C to 85°C. This component is widely utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: RL78/G12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1.5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RL78 |
| Data Converters | A/D 11x8/10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | CSI, I2C, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 20-LSSOP |
| Number of I/O | 14 |
| Programmable | Not Verified |
