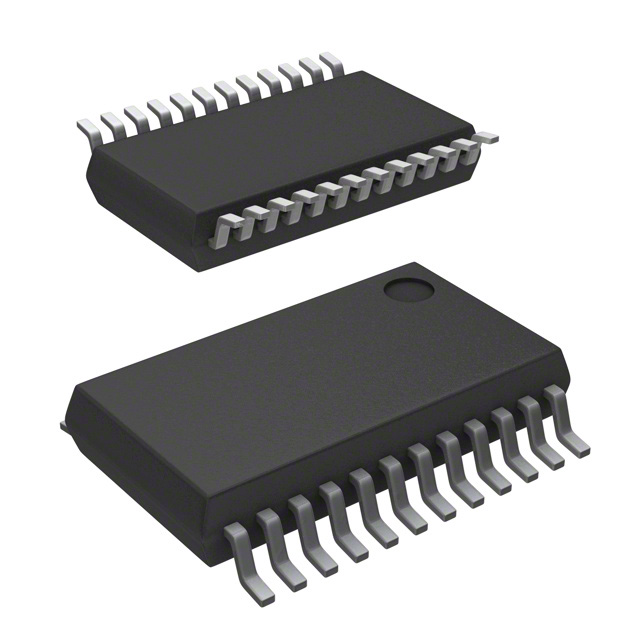

M37549G3FP#U0
IC MCU 8BIT 6KB QZROM 24SSOPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M37549G3FP-U0 is an 8-bit microcontroller from the 740/38000 series. This device features a 740 core operating at 8MHz with 6KB of QzROM program memory and 256 bytes of RAM. Connectivity options include SIO and UART/USART. Peripherals include LED, LVD, POR, and WDT. It provides 19 I/O lines and 8 channels of 10-bit Analog-to-Digital conversion. The operating temperature range is -20°C to 85°C. Supplied in a 24-SSOP package for surface mounting, this component is suitable for applications in industrial automation and consumer electronics. The voltage supply range is 1.8V to 5.5V. Packaging is provided in Bulk.
Additional Information
Series: 740/38000RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 6KB (6K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | QzROM |
| EEPROM Size | - |
| Core Processor | 740 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | SIO, UART/USART |
| Peripherals | LED, LVD, POR, WDT |
| Supplier Device Package | 24-SSOP |
| Number of I/O | 19 |
| Programmable | Not Verified |
