M30879FLBGP#U5
IC MCU 16/32BIT 1MB FLASH 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation M30879FLBGP-U5 is a 16/32-Bit microcontroller from the M16C™ M32C/80/87 series. This device features an M32C/80 core operating at 32MHz. It offers 1MB of FLASH program memory and 48KB of RAM, complemented by 4K x 8 of EEPROM. The microcontroller includes an A/D converter with 26 channels of 10-bit resolution and two 8-bit D/A converters. Peripherals such as DMA, POR, PWM, and WDT are integrated. Connectivity options include EBI/EMI, I2C, IEBus, IrDA, SIO, and UART/USART. With 85 I/O lines, the M30879FLBGP-U5 is suitable for applications in automotive, industrial, and consumer electronics. It is supplied in a 100-LFQFP (14x14) package for surface mounting and operates within an ambient temperature range of -20°C to 85°C. The operating voltage is between 3V and 5.5V.
Additional Information
Series: M16C™ M32C/80/87RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 48K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | M32C/80 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, IEBus, IrDA, SIO, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |

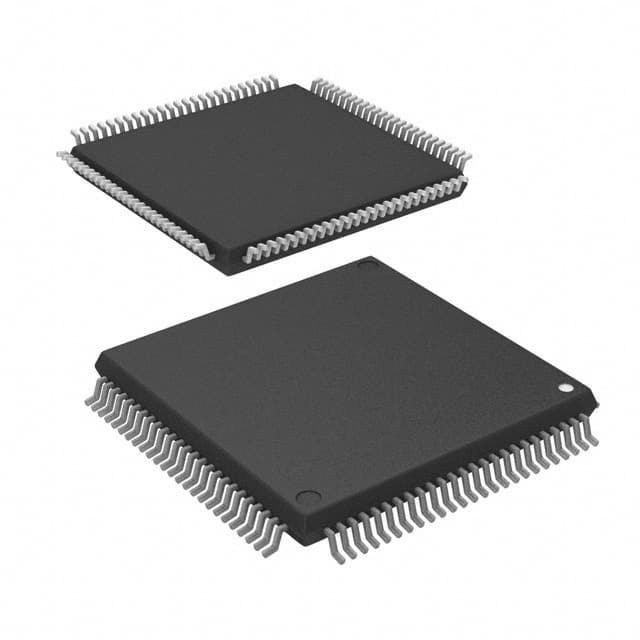

| Supplier Device Package | 100-LFQFP (14x14) |
| Number of I/O | 85 |
| Programmable | Not Verified |
