M30800FCFP#U3
IC MCU 16BIT 128KB FLASH 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/80 microcontroller, part number M30800FCFP-U3, features a 16-bit M16C/80 core operating at 20MHz. This device offers 128KB of FLASH program memory and 10KB of RAM. Integrated peripherals include DMA, PWM, and WDT. Connectivity options are provided via SIO and UART/USART interfaces. The component includes 10-bit A/D converters and 8-bit D/A converters. Supplied in a 100-QFP (14x20) package, it is designed for surface mount applications. The operating temperature range is -40°C to 85°C. This microcontroller is utilized in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: M16C™ M16C/80RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 10K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M16C/80 |
| Data Converters | A/D 10x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SIO, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 85 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

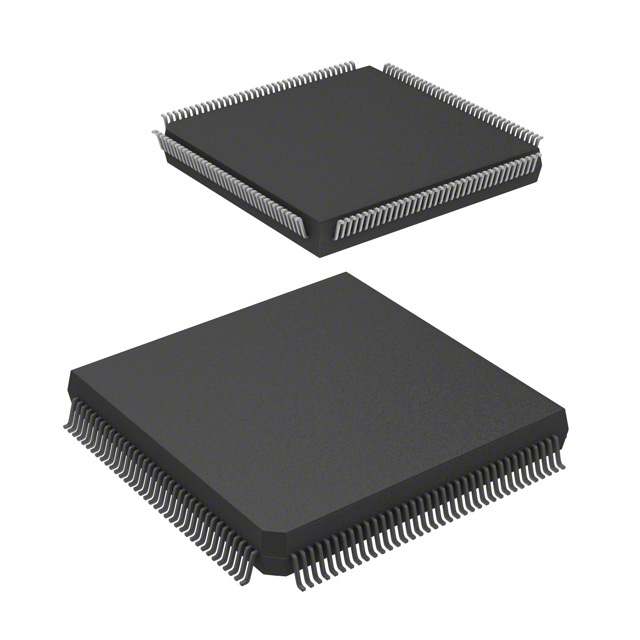

M30802SGP#U5
