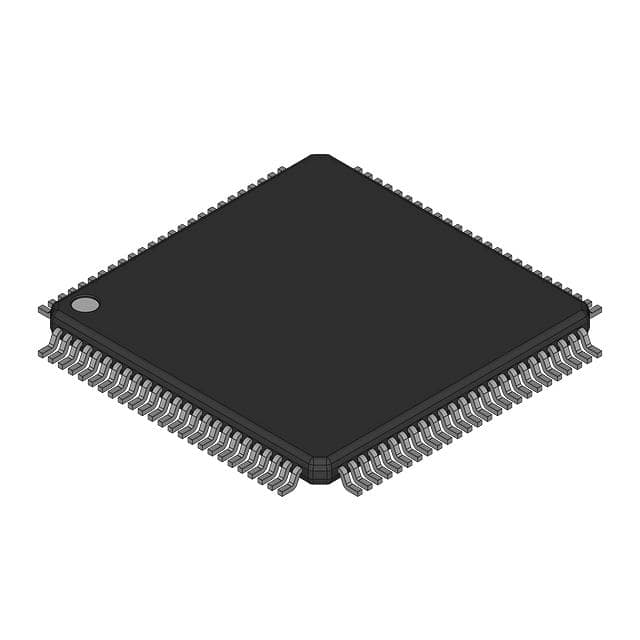

M306NBFCTFP#Q
IC MCU 16BIT 128KB FLASH 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/60/6N1 series microcontroller, part number M306NBFCTFP-Q, features a 16-bit M16C/60 core operating at 16MHz. This device offers 128KB of FLASH program memory and 5KB of RAM. Connectivity options include CANbus, SIO, and UART/USART. The microcontroller integrates multiple peripherals such as DMA and WDT, along with 26x10-bit A/D and 2x8-bit D/A data converters. It is supplied in a 100-QFP (14x20) surface mount package, requiring an external oscillator. The operating voltage range is 4.2V to 5.5V, with an operating temperature of -40°C to 85°C. This component is utilized in automotive and industrial control applications.
Additional Information
Series: M16C™ M16C/60/6N1RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M16C/60 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Connectivity | CANbus, SIO, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 87 |
| Programmable | Not Verified |
