M306N5FCTFP#UKV

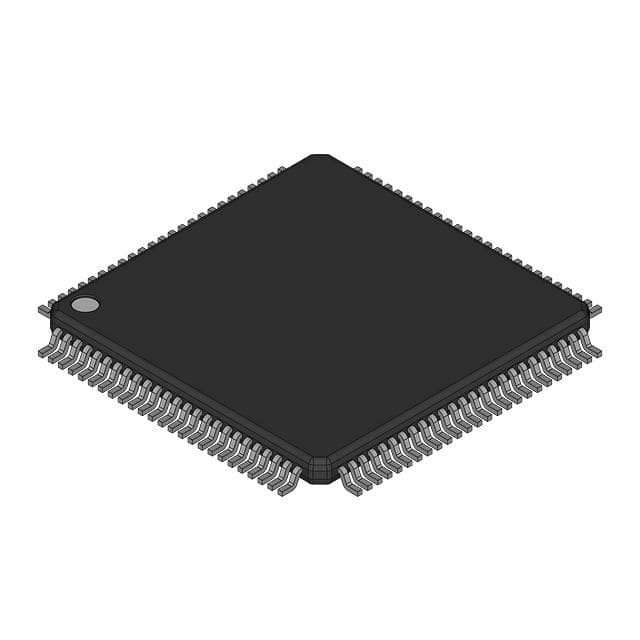

IC MCU 16BIT 128KB 100BQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/60/6N5 microcontroller, part number M306N5FCTFP-UKV, features a 16-bit M16C/60 core operating at 20MHz. This device provides 128KB of FLASH program memory and 5KB of RAM. Integrated peripherals include DMA and WDT. Connectivity options comprise CANbus, I2C, IEBus, SIO, and UART/USART. Data conversion is facilitated by 26x10-bit A/D converters and 2x8-bit D/A converters. The unit also includes 4KB of EEPROM. Housed in a 100-BQFP package, it is designed for surface mounting and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in automotive and industrial sectors.
Additional Information
Series: M16C™ M16C/60/6N5RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 5K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | M16C/60 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Connectivity | CANbus, I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 87 |
| Programmable | Not Verified |
