M306N4MGT-165FPUFQ
IC MCU 16BIT 256KB MROM 100PQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

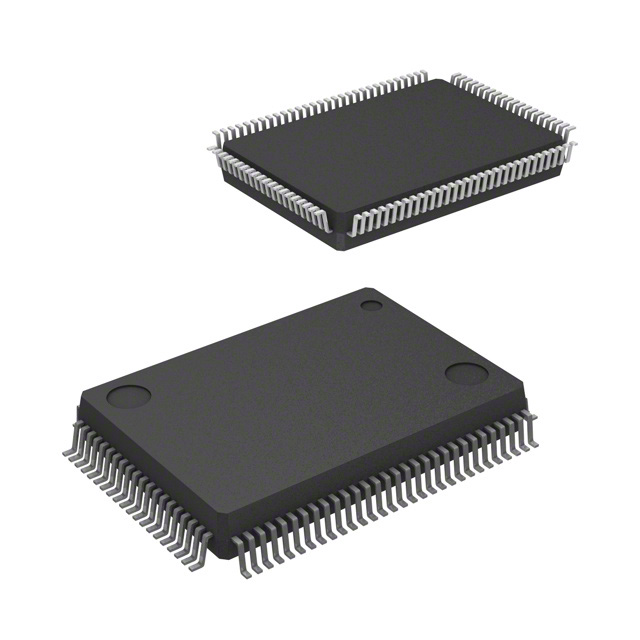

The Renesas Electronics Corporation M16C™ M16C/60/6N4 microcontroller, part number M306N4MGT-165FPUFQ, is a 16-bit device featuring a 20MHz M16C/60 core. This microcontroller offers 256KB of Mask ROM for program storage and 10KB of RAM. It includes integrated peripherals such as DMA and WDT, along with data conversion capabilities including 26x10-bit A/D converters and 2x8-bit D/A converters. Connectivity options are extensive, supporting CANbus, I2C, IEBus, SIO, and UART/USART protocols. With 87 I/O pins and an internal oscillator, it is housed in a 100-QFP (14x20) surface mount package. Operating within a temperature range of -40°C to 85°C, this component is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: M16C™ M16C/60/6N4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 10K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | Mask ROM |
| EEPROM Size | - |
| Core Processor | M16C/60 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Connectivity | CANbus, I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 100-QFP (14x20) |
| Number of I/O | 87 |
| Programmable | Not Verified |
