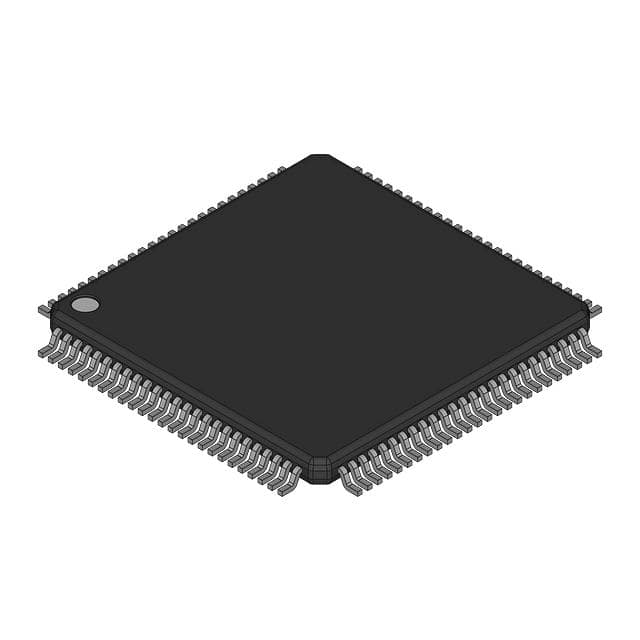

M30624FGPGP#D3C
IC MCU 16BIT 256KB FLSH 100LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/60/62P microcontroller, part number M30624FGPGP-D3C, features a 16-bit M16C/60 core operating at 24MHz. This device provides 256KB of FLASH program memory and 20KB of RAM. Integrated peripherals include DMA and WDT. Connectivity options encompass I2C, IEBus, and UART/USART. The microcontroller is equipped with 26x10-bit A/D converters and 2x8-bit D/A converters. It offers 85 I/O lines and an internal oscillator. The M30624FGPGP-D3C is supplied in a 100-LFQFP (14x14) package for surface mounting, operates within a voltage range of 2.7V to 5.5V, and is rated for an ambient temperature range of -40°C to 85°C. This component is commonly utilized in automotive, industrial, and consumer electronics applications.
Additional Information
Series: M16C™ M16C/60/62PRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 20K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | M16C/60 |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, IEBus, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 100-LFQFP (14x14) |
| Number of I/O | 85 |
| Programmable | Not Verified |
