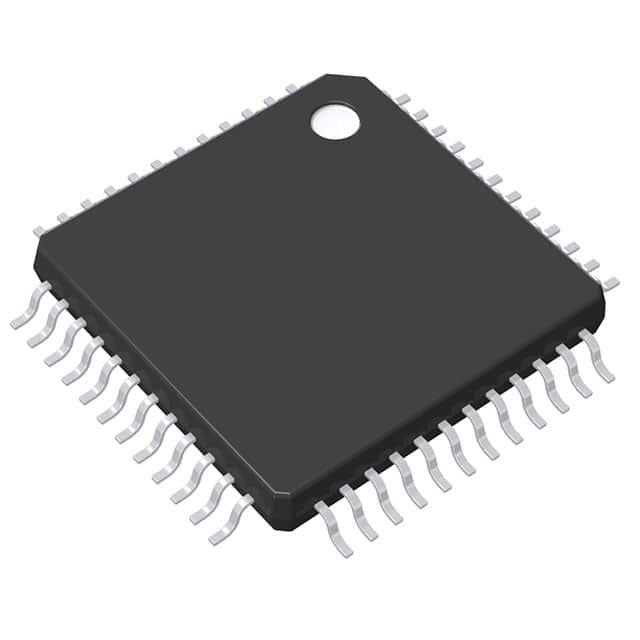

M30260F3AGP#U5A
IC MCU 16BIT 24KB FLASH 48LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/Tiny/26A series microcontroller, part number M30260F3AGP-U5A, features a 16-bit M16C/60 core operating at 20MHz. This component offers 24KB of FLASH program memory, 1KB of RAM, and 4KB of EEPROM. Connectivity options include I2C, IEBus, SIO, and UART/USART. The device incorporates a 12-channel 10-bit Analog-to-Digital converter and peripherals such as DMA, PWM, Voltage Detect, and WDT. With 39 I/O lines, an internal oscillator, and a surface mount 48-LQFP (7x7) package, it is suitable for applications requiring a compact and versatile MCU. The operating temperature range is -20°C to 85°C, with a supply voltage of 2.7V to 5.5V. This microcontroller is widely utilized in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: M16C™ M16C/Tiny/26ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 24KB (24K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | M16C/60 |
| Data Converters | A/D 12x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, PWM, Voltage Detect, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 39 |
| Programmable | Verified |
