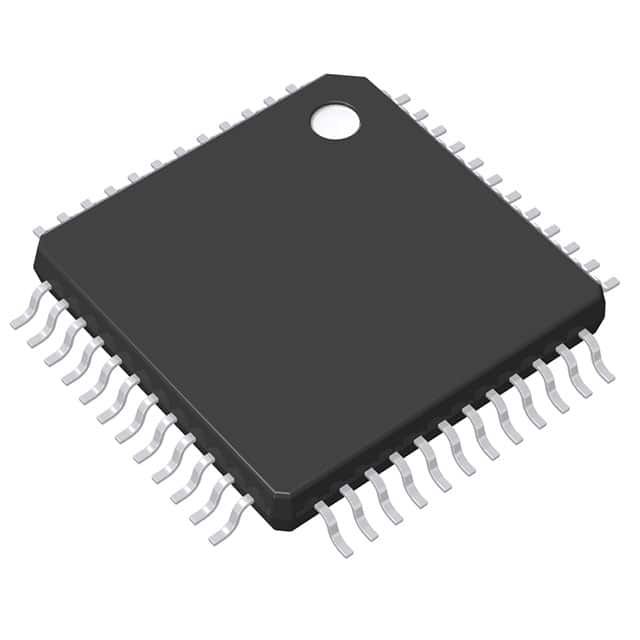

M30260F3AGP#U3A
IC MCU 16BIT 24KB FLASH 48LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation M16C™ M16C/Tiny/26A series microcontroller, part number M30260F3AGP-U3A. This 16-bit M16C/60 core microcontroller operates at 20MHz and features 24KB of FLASH program memory with 1KB of RAM and 4KB of EEPROM. Connectivity options include I2C, IEBus, SIO, and UART/USART. It is equipped with a 12-channel, 10-bit Analog-to-Digital converter and peripherals such as DMA, PWM, Voltage Detect, and WDT. The device offers 39 general-purpose I/O lines and an internal oscillator. Supplied in a 48-LQFP (7x7) surface mount package, it operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of -40°C to 85°C. This component is utilized in automotive, industrial, and consumer electronics applications.
Additional Information
Series: M16C™ M16C/Tiny/26ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 24KB (24K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | M16C/60 |
| Data Converters | A/D 12x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, PWM, Voltage Detect, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 39 |
| Programmable | Verified |
