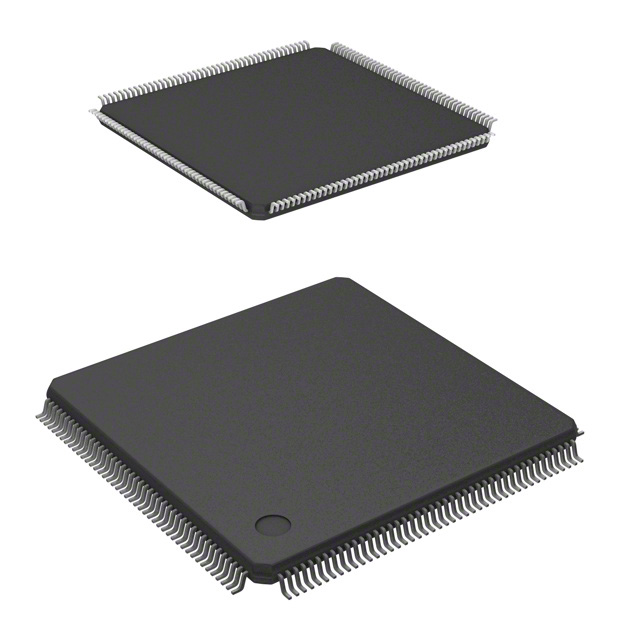

HD64F7065AF60V
IC MCU 32BIT 256KB FLASH 176LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation SuperH® SH7060 microcontroller, part number HD64F7065AF60V. This 32-bit single-core SH-2 DSP processor operates at 60MHz, featuring 256KB of FLASH program memory and 8KB of RAM. Connectivity includes EBI/EMI and SCI interfaces. On-chip peripherals consist of DMA, POR, PWM, and WDT. It also incorporates 8x10-bit A/D converters and 2x8-bit D/A converters. The device is housed in a 176-LQFP (24x24) surface mount package. Operating voltage is between 3V and 3.6V, with an operating temperature range of -20°C to 75°C. This component is utilized in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: SuperH® SH7060RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 176-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | SH-2 DSP |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, SCI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 176-LQFP (24x24) |
| Number of I/O | 110 |
| Programmable | Not Verified |
