HD64F7017FI28V
IC MCU 32BIT 128KB FLASH 112QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More

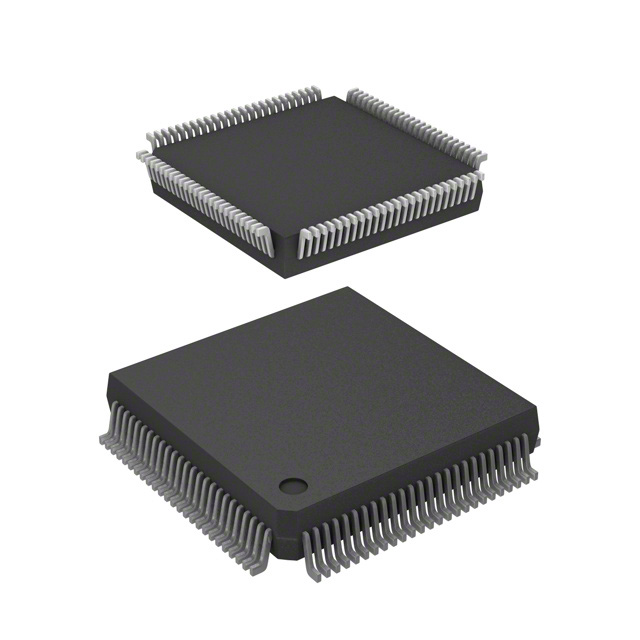

Renesas Electronics Corporation's SuperH® SH7010 series microcontroller, part number HD64F7017FI28V, features a 32-bit SH-2 single-core processor operating at 28.7MHz. This device offers 128KB of FLASH program memory and 4KB of RAM. On-chip peripherals include DMA, PWM, and WDT. Connectivity options are EBI/EMI and SCI. It also integrates 8x10-bit A/D converters. The HD64F7017FI28V is housed in a 112-QFP (20x20) surface-mount package, with 74 I/O pins. Operating voltage is specified from 4.5V to 5.5V, with an ambient operating temperature range of -20°C to 75°C. This component is commonly utilized in industrial automation and control systems.
Additional Information
Series: SuperH® SH7010RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 112-BQFP |
| Mounting Type | Surface Mount |
| Speed | 28.7MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | SH-2 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SCI |
| Peripherals | DMA, PWM, WDT |
| Supplier Device Package | 112-QFP (20x20) |
| Number of I/O | 74 |
| Programmable | Not Verified |
