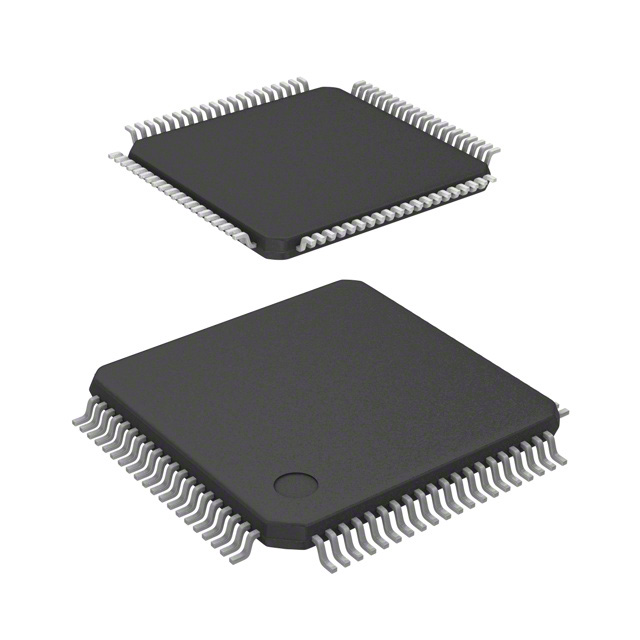

HD64F38024RWIV
IC MCU 8BIT 32KB FLASH 80TQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8/300L SLP series microcontroller, part number HD64F38024RWIV. This 8-bit MCU features a 5MHz H8/300L core, 32KB of FLASH program memory, and 1KB of RAM. It includes an 8-channel, 10-bit A/D converter and supports SCI connectivity. Peripherals include an LCD controller, PWM generation, and a watchdog timer. The device operates from 1.8V to 5.5V and is housed in an 80-TQFP package suitable for surface mounting. This component finds application in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: H8® H8/300L SLPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-TQFP |
| Mounting Type | Surface Mount |
| Speed | 5MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300L |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | SCI |
| Peripherals | LCD, PWM, WDT |
| Supplier Device Package | 80-TQFP (12x12) |
| Number of I/O | 51 |
| Programmable | Not Verified |
