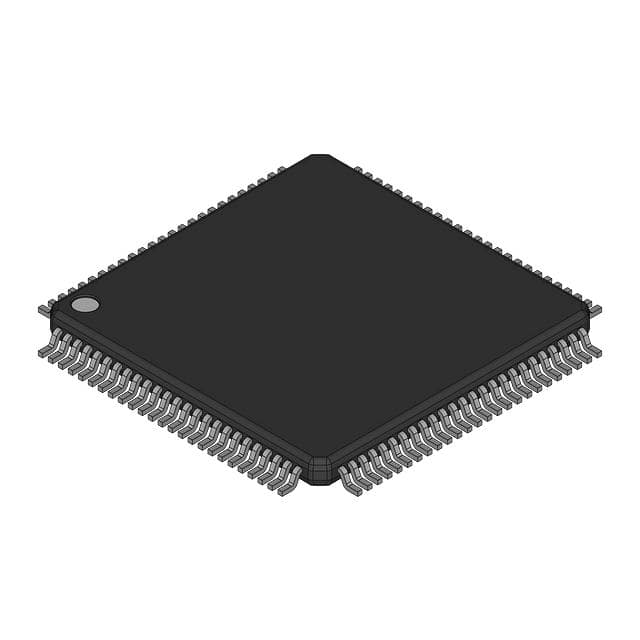

HD64F3067RVX13
IC MCU 16BIT 128KB FLASHManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8/300H series microcontroller, part number HD64F3067RVX13, is a 16-bit device featuring a 20MHz H8/300H core. This unit offers 128KB of FLASH program memory (128K x 8) and 4KB of RAM. Integrated peripherals include DMA, PWM, and WDT. Connectivity options are supported via SCI and SmartCard interfaces. The device includes an 8-channel 10-bit Analog-to-Digital converter and two 8-bit Digital-to-Analog converters. It operates within a voltage range of 3V to 5.5V and has 70 I/O pins. Designed for surface mounting, it comes in a 100-QFP package. The operating temperature range is -20°C to 75°C. This component is utilized in applications within the automotive, industrial, and consumer electronics sectors.
Additional Information
Series: H8® H8/300HRoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-QFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 70 |
| Programmable | Not Verified |
