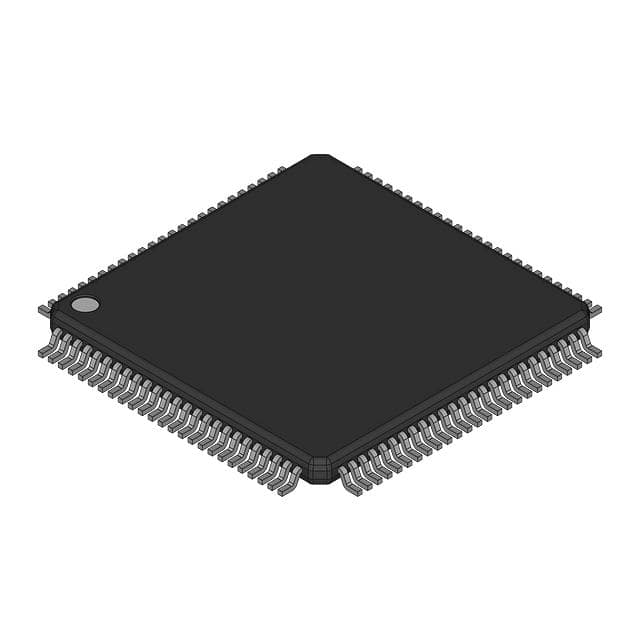

HD6473837H
IC MCU 8BIT 60KB OTP 100QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8/300L microcontroller, part number HD6473837H. This 8-bit MCU features an H8/300L core operating at 5MHz. It offers 60KB of OTP program memory and 2KB of RAM. On-chip peripherals include SCI for connectivity, LCD and PWM controllers, and a 12-channel 8-bit A/D converter. The device supports 84 I/O lines and operates within a voltage range of 2.7V to 5.5V. It is housed in a 100-pin QFP (14x14) package and is designed for surface mount applications. Operating temperature ranges from -20°C to 75°C. This component is utilized in industrial automation and consumer electronics.
Additional Information
Series: H8® H8/300LRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 5MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -20°C ~ 75°C |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | H8/300L |
| Data Converters | A/D 12x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI |
| Peripherals | LCD, PWM |
| Supplier Device Package | 100-QFP (14x14) |
| Number of I/O | 84 |
| Programmable | Not Verified |
