HD6417041AF28V
IC MCU 32BIT ROMLESS 144QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation SuperH® SH7040 microcontroller, part number HD6417041AF28V, features a 32-bit SH-2 core operating at 28.7MHz. This ROMless device offers 4KB of RAM and is packaged in a 144-QFP (20x20) surface mount configuration. Connectivity options include EBI/EMI and SCI. Peripherals comprise DMA, POR, PWM, and WDT. The HD6417041AF28V includes 8x10-bit A/D converters and supports 98 I/O lines. It operates within a voltage range of 4.5V to 5.5V and has an operating temperature of -20°C to 75°C. This component is utilized in various industrial applications.
Additional Information
Series: SuperH® SH7040RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 28.7MHz |
| Program Memory Size | - |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | SH-2 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SCI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 144-QFP (20x20) |
| Number of I/O | 98 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

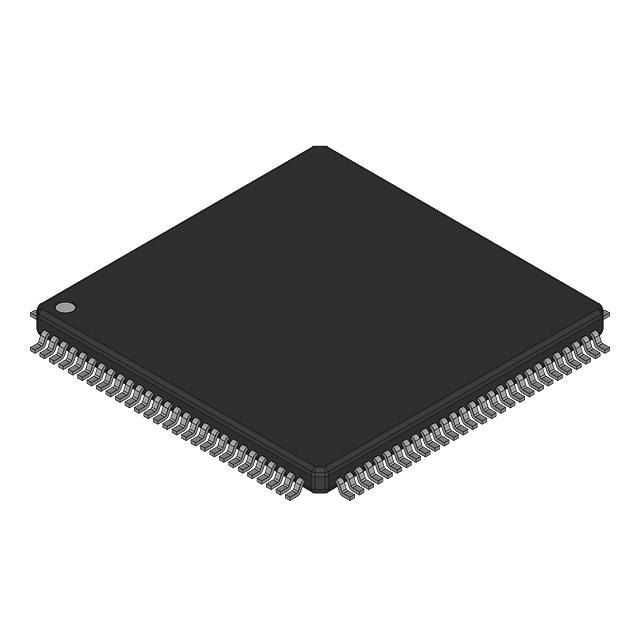

HD6417040ACF28V
