HD6417034AFI20V
IC MCU 32BIT ROMLESS 112QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation SuperH® SH7030 microcontroller, part number HD6417034AFI20V, features a 32-bit SH-1 core operating at 20MHz. This ROMless device is housed in a 112-QFP (20x20) package and supports a voltage range of 4.5V to 5.5V. Key peripherals include DMA, POR, PWM, and WDT. Connectivity options are provided via EBI/EMI and SCI interfaces. The component includes an 8-channel, 10-bit A/D converter and 4KB of RAM. Designed for surface mount applications, this microcontroller is suitable for industrial automation, automotive systems, and consumer electronics. Its operating temperature range is -20°C to 75°C (TA).
Additional Information
Series: SuperH® SH7030RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 112-BQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | - |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | SH-1 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SCI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 112-QFP (20x20) |
| Number of I/O | 32 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
HD6417034AF20V
IC MCU 32BIT ROMLESS 112QFP

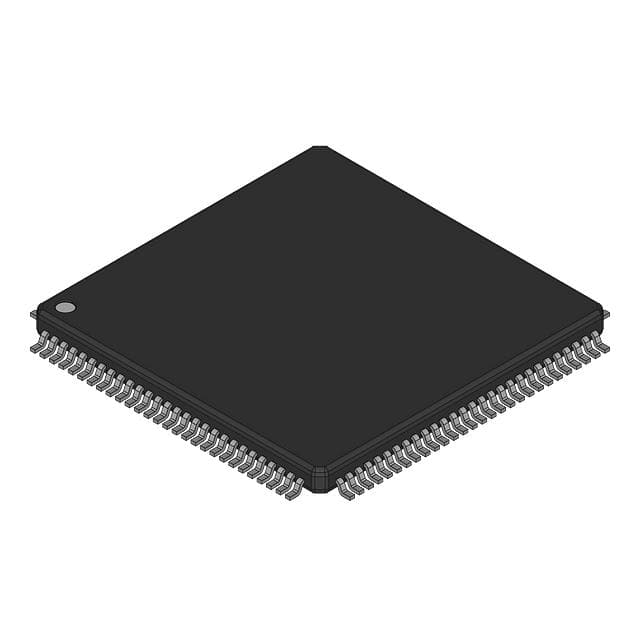

HD6417032VF12V
