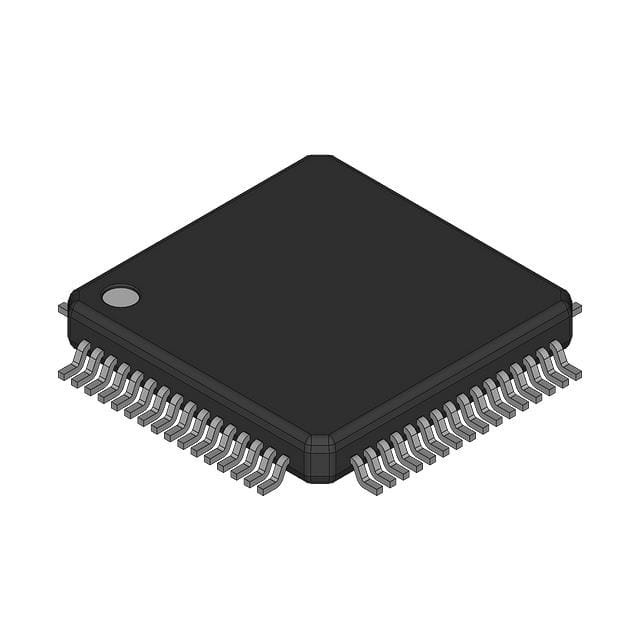

DN3687GFPV
IC MCU 16BIT 56KB FLASH 64LQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
H8/300H H8® H8/300H Tiny Microcontroller IC 16-Bit 20MHz 56KB (56K x 8) FLASH 64-LFQFP (10x10)
Additional Information
Series: H8® H8/300H TinyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 56KB (56K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | I2C, SCI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 43 |
| Programmable | Not Verified |
