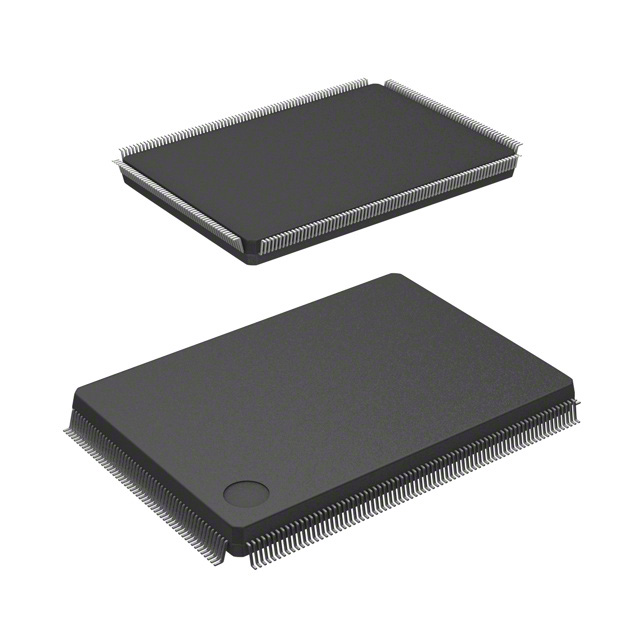

DF7055SF40KNV
IC MCU 32BIT 512KB FLASH 256QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation SH-2E SuperH® SH7050 microcontroller, part number DF7055SF40KNV. This 32-bit single-core microcontroller operates at 40MHz and features 512KB of FLASH program memory and 32KB of RAM. The device includes a 256-QFP (40x28) package for surface mounting. Connectivity options include CANbus, EBI/EMI, and SCI. Integrated peripherals comprise DMA, POR, PWM, and WDT. It also offers A/D conversion with 32 channels of 10-bit resolution. This component is suitable for applications requiring robust processing and communication capabilities, commonly found in industrial automation and automotive systems. The operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: SuperH® SH7050RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BFQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | SH-2E |
| Data Converters | A/D 32x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 256-QFP (40x28) |
| Number of I/O | 149 |
| Programmable | Not Verified |
