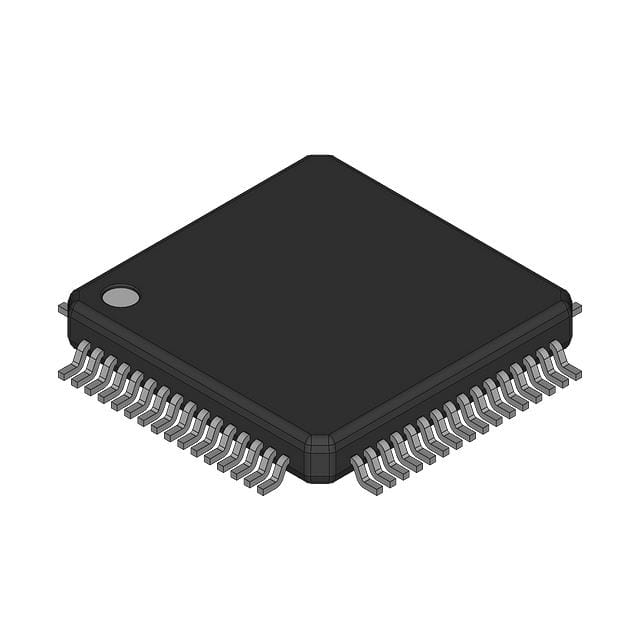

DF36077LHV
IC MCU 16BIT 56KB FLASH 64QFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
Renesas Electronics Corporation H8® H8/300H Tiny series microcontroller, part number DF36077LHV, features a 16-bit H8/300H core operating at 16MHz. This component offers 56KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C and SCI interfaces. The device is equipped with an 8-channel, 10-bit Analog-to-Digital converter and peripherals such as LVD, POR, PWM, and WDT. With 47 I/O lines, it is housed in a 64-QFP (14x14) surface-mount package. The operating temperature range is -20°C to 75°C, and it requires a supply voltage between 3V and 3.6V. This microcontroller is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: H8® H8/300H TinyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-BQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 56KB (56K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, SCI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 64-QFP (14x14) |
| Number of I/O | 47 |
| Programmable | Not Verified |
