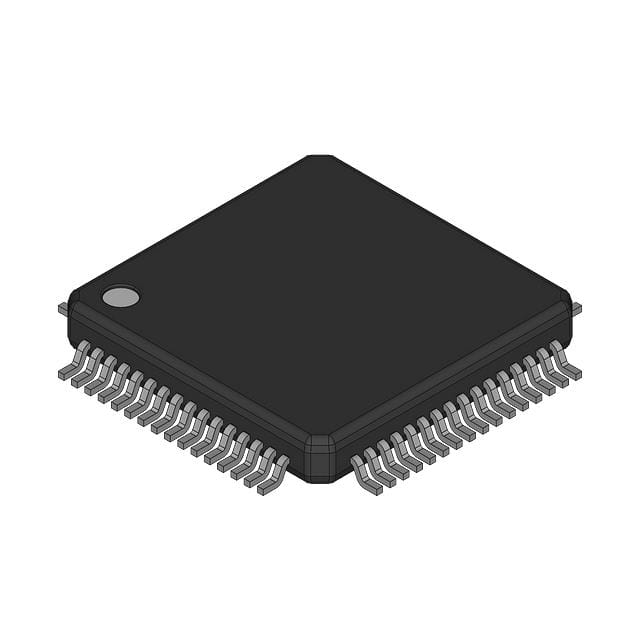

DF36054FZV
IC MCU 16BIT 32KB FLASH 64LFQFPManufacturer: Renesas Electronics Corporation
Categories: Microcontrollers
Quality Control: Learn More
The Renesas Electronics Corporation H8® H8/300H Tiny series microcontroller, part number DF36054FZV, is a 16-bit device featuring an H8/300H core operating at 20MHz. This surface mount component offers 32KB of FLASH program memory and 2KB of RAM. Connectivity options include CANbus, SCI, and SSU. The DF36054FZV integrates an 8-channel 10-bit Analog-to-Digital converter and peripherals such as PWM and WDT. Housed in a 64-LFQFP (10x10) package, it operates within a voltage range of 3V to 5.5V and an ambient temperature range of -20°C to 75°C. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: H8® H8/300H TinyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | H8/300H |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, SCI, SSU |
| Peripherals | PWM, WDT |
| Supplier Device Package | 64-LFQFP (10x10) |
| Number of I/O | 45 |
| Programmable | Not Verified |
